5569381-1 MOD JACK 8P8C R/A SHIELDED 2x1 Shielded w LED

Name: 55693811 MOD JACK 8P8C RA SHIELDED 2x1 Shielded w LED
Brand: LINK-PP
Price: 0.11 USD

5569381-1 MOD JACK 8P8C R/A SHIELDED 2x1 Shielded w LED Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : LPJE17208CNL

MOQ : 50/500/1000/60K

Price : $0.11-$24

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Spec : 5569381-1

Cross PN : LPJE17208CNL

Family : Rj45 No Magnetics

Application : HUB, PC card, Switch, Router etc

Mounting : Side Entry (Right Angle)

Cross Rf : LPJE17208CNL = 5569381-1

Contact Now

5569381-1 MOD JACK 8P8C R/A SHIELDED 2x1 Shielded w LED

Quick Details:

1. Gender: female Socket to Ethernet

2. 2X1 Port stacked RJ45 Jack
3. NO Magnetic RJ45 Jack

4. LPJE17208CNL Pin to Pin Compatible

Product parameters:

2x1 RJ45 Connector without Integrated Magnetics,Without LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number	LPJE17208CNL
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	NO
Diodes	NO DIODES
LED Option	WITHOUT
Latch	TAB UP/TAB DOWN
Number of Ports	2X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	1.00
Package Height (mm)	25.50
Package Length (Inches)	1.122
Package Length (mm)	28.50
Package Width (Inches)	0.680
Package Width (mm)	17.28
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	without Magnetics
Temperature	- 40 TO + 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

5569381-1 MOD JACK 8P8C R/A SHIELDED 2x1 Shielded w LED

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,

1100 staff,

100% test

Flexible delivery time

Product Tags:

stacked rj45 connectors

rj45 usb connector combo

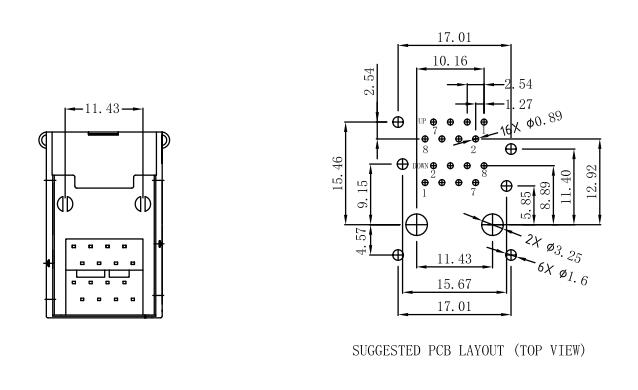

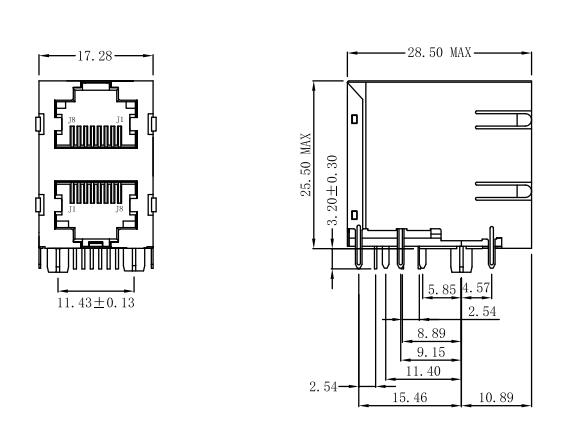

5569381-1 MOD JACK 8P8C R/A SHIELDED 2x1 Shielded w LED Images
