LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

Name: LPJG0803GENL RJ45 Connector Jack Female Gigabit Pins DY9759A551124246
Brand: LINK-PP
Price: 1 USD

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246 Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : DY9759-A551124-246

MOQ : 50/500/1000

Price : Supportive

Packaging Details : 50pcs/tray,1200pcs/carton

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Item : DY9759-A551124-246

Type : RJ45 Connector

TAB direction : Down

RoHS Compliant : yes

Indicators : LED colors can be selected

Suitable LAN PHY Spec. : 10/100 Base-T

Contact Now

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

1.10/100/1000 Base-T

2.1X1 Tab-down
3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

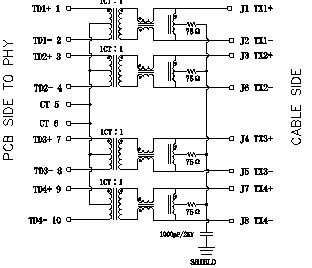

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

ELECTRICAL SPECFICATIONS @25℃

1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.3-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-13.5dB MIN @ 40MHz
-11.5dB MIN @ 50MHz
-10dB MIN @ 60-80MHz
5.Cross talk:
-40dB MIN @ 30MHz
-36dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-35dB MIN @ 30MHz
-32dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃ TO 70℃.

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

Product Tags:

rj45 with magnetics

rj45 magnetic jack

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246 Images
