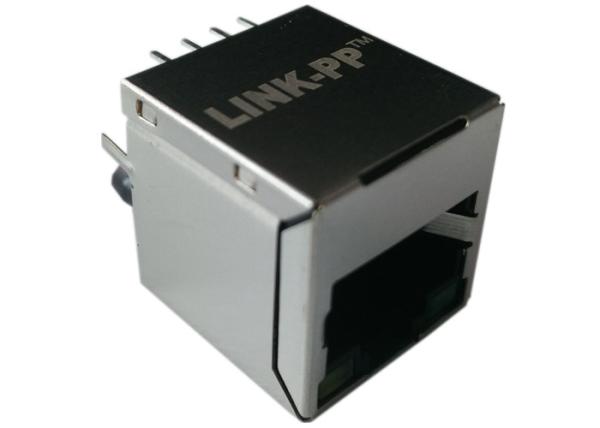

LPJD0017BHNL Magnetic RJ45 Jack 180 Degree 1x10/100Mbps

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LPJD0017BHNL Magnetic RJ45 Jack 180 Degree 1x10100Mbps
Brand: LINK-PP
Price: 1 USD

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : LPJD0017BHNL

MOQ : 50/500/1000

Price : Supportive

Packaging Details : 50pcs/tray,1200pcs/carton

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Spec : LPJD0017BHNL

Part No : LPJD0017BHNL

Ethernet : 1x10/100Mbps

Turn Ratio : 1:1

Indicator : LED Flexible

Samples : Available

Contact Now

Electrical Specifications @25℃ 1.Turns Ratio: TX=1CT:1CT RX=1CT:1CT 2.Inductance: 350uH Min @100KHz,100mV,8mA DC Bias Current. 3.Insertion Loss: 0.1～100MHz:-1.0dB Max 4.Return Loss(dB Min): 1～30MHz:-18 40MHz:-16 50MHz:-14 60～80MHz:-12 5.Crosstalk(dB Min): 30MHz:-45 60MHz:-40 100MHz:-35 6.CMR:(dB Min): 30MHz:-35 60MHz:-30 100MHz:-25 7.Hipot: 1500Vrms 8.Operating Temperature: 0℃～70℃.

Product Tags:

rj45 with magnetics
