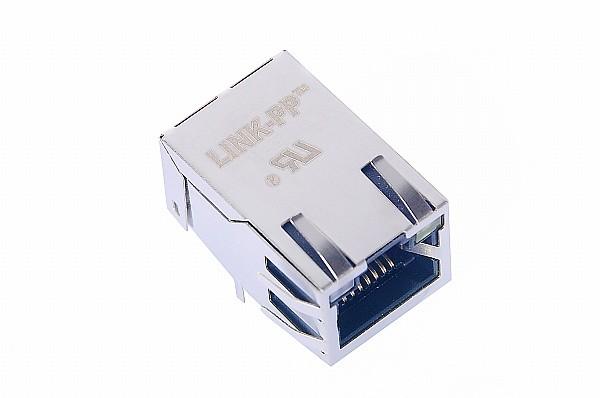

1X1 RoHS RJ45 MagJack Tab Up 0826-1X1T-57-F Bel Magnetics

Name: 1X1 RoHS RJ45 MagJack Tab Up 08261X1T57F Bel Magnetics
Brand: LINK-PP
Price: 1 USD

1X1 RoHS RJ45 MagJack Tab Up 0826-1X1T-57-F Bel Magnetics Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : 0826-1X1T-57-F

MOQ : 50/500/1000

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Price : Supportive

Part Status : Active

Connector Type : Integrated Connector Modules (ICM)

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation : 90° Angle (Right)

Termination : Solder

LED Color : Green, Orange - Yellow

Shielding : Shielded, EMI Finger

Tab Direction : Up

Operating Temperature : 0°C ~ 70°C

Contact Material : Copper Alloy

Contact Finish : Gold

Shield Material : Copper Alloy

Housing Material : Polyamide (PA), Nylon

Contact Now

0826-1X1T-57-F RJ45 MagJack Overview:

1. Key Features:	1) RJ45 Connector with integrated transformer
	2) Power over Ethernet 15W
	3) 350μH MIN. OCL @ 100KHz/100mVRMS 8MA DC BIAS
	4) Complies with IEEE 802.3
	5) Operating Temperature Range of 0° to +70° C
	6) RoHS Compliant, Soldering = 260° C for 10 Seconds

2. Networking Equipment Applications:	1) Storage
	2) Switches
	3) Routers
	4) Servers
	5) Workstations
	6) Motherboards
3. Mechanical Specifications:
1) Port Configuration	1x1
2) Shielded	Yes
3) EMI Finger	Yes
4) Termination Method	Solder
5) Latch Orientation	Standard - Latch UP
6) PCB Tail Length	3.50±0.50mm
7) Preloaded	Yes
8) Contact Termination Type	Through Hole
9) Connector Style	Integrated Connector Modules
10) Left LED Color	Orange Green
11) Right LED Color	Yellow
12) Operating Temperature ( )	0 - 70°C
4. Industry Standards:
1) RoHS/ELV Compliance	RoHS-compliant, ELV-compliant
2) Lead-Free Solder Processes	Wave solder capable of 260°C
3) RoHS/ELV Compliance History	Always was RoHS compliant

LINK-PP ICMs Production Line:

LINK-PP supplies integrated connector modules (ICMs) that incorporate Ethernet filtering solutions into RJ45 connectors. Its product line features various RJ45 MagJack options and mechanical Options including plug tab up/down, with or without LEDs, and bi-color configurations. The 2x1/ 2x4/2x6 /2x8 multi-port configurations with RJ45 and USB port combinations. These connectors are flexible to meet various design and performance requirements. With decades of expertise, LINK-PP provides reliable, high-quality solutions for modern communication and network infrastructure applications.
