23F-02NL Ethernet Transformer Surface Mount 10 Base-T Interface Modules

  • 1
  • 2
  • 3

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : 23F-02NL

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Packaging Details : T&R

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Specificatio : 23F-02NL

LINK-PP P/N : LP21643NL

Speed : 10 BASE-T

Number of Ports : SINGLE

Application : Lan Ethernet(NoN PoE)

Package : SMD

Temperature : 0℃ TO +70℃

Archivi Disponibil : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

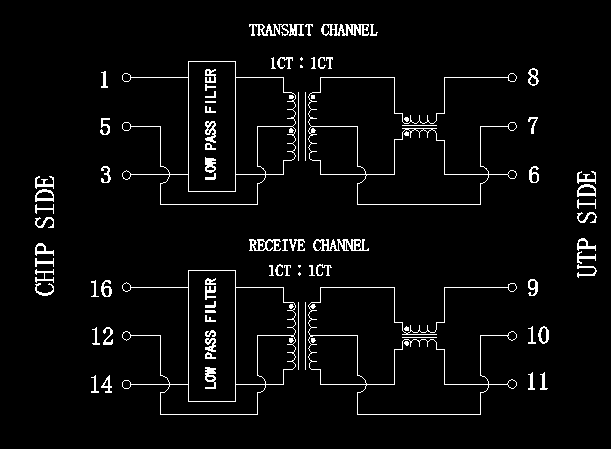

23F-02NL Ethernet Transformer Surface Mount 10 Base-T Interface Modules

Electrical Specifications @25℃


1.Turn Ratio(±2%): 1CT∶1CT
2.Insertion Loss:
1-10MHz: -1.0dB MAX
3.Attenuation:
TX: 30MHz:-30dB MIN
40MHz:-35dB MIN
100MHz:-35dB MIN
RX: 30MHz:-20dB MIN
40MHz:-31dB MIN
4.Return Loss:
5-10MHz:-15dB MIN
5.Cut-Off Frequency:
15MHz:-30dB MIN
6.Hipot: 1500Vrms/0.5mA/2Sec
7.Operating Temperature: 0～+70℃.

NOTES:
1.Fully Integrated for Adapter,Hub,
and Motherboard Applications
2.Available in enhanced or standard
design versions
3.Low profile surface mount package
4.E2000 series part numbers designed
for AMD,DEC,LSI,Motorola,and National
transceivers
5.RoHS"NL" peak solder rating 245℃.
