16 Pin LAN Transformer SMD 10/100Base-T TG110-E050N5RL Magnetics

10 / 100 BASE-TX Single Port LAN Transformer With 16 Pins Description:

Key Features:

• Transformer Style TG110-E050N5RL 10/100Base-TX Magnetic Module
• Surface mount Mounting, simplifying PCB integration.
• IEEE 802.3u compliant.
• UL/EN62368 Certification for safety.
• High-temperature soldering Max 260°C.
• Patented open frame construction design.
• -40 to +85°C Operating Temperature Range
• Moisture Sensitivity Level MSL 1
• 100% electrical testing guarantees transformer reliability.
• 1CT:1CT Turns Ratio for signal integrity.
• Capacitance Between Windings (Cw/w): 40 pF max, minimizing signal loss.
• Leakage Inductance (LL): 0.4 µH max, ensuring minimal signal distortion.
• Primary DCR: 1.0 Ω max, offering low resistance for efficient operation.
• OCL Inductance: 0.35 mH max, supporting effective signal transfer.
• Common-Mode Rejection Ratio (CMRR): -40 dB min (0.1 to 100 MHz), ensuring noise suppression.
• Crosstalk: -40 dB min (0.1 MHz to 100 MHz), minimizing interference between signals.
• Hi-Pot Rating: 1500Vrms, providing high insulation resistance.

Applications of 10/100Base-TX Magnetic Module Transformer:

Networking and communication equipment:

1. HUBs
2. PC cards
3. Switches
4. Routers
5. PC Mainboards
6. SDH (Synchronous Digital Hierarchy) systems
7. PDH (Plesiochronous Digital Hierarchy) systems
8. IP Phones
9. xDSL modems

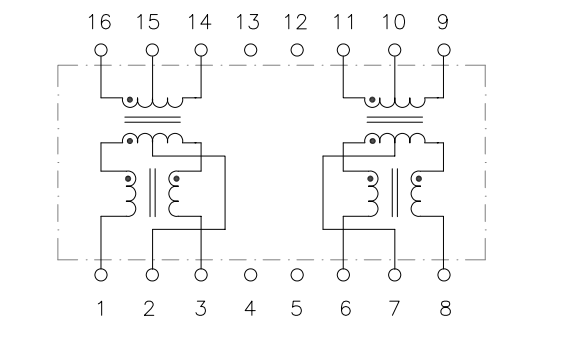

TG110-E050N5RL 10/100BASE-TX Ethernet Transformers Circuit:

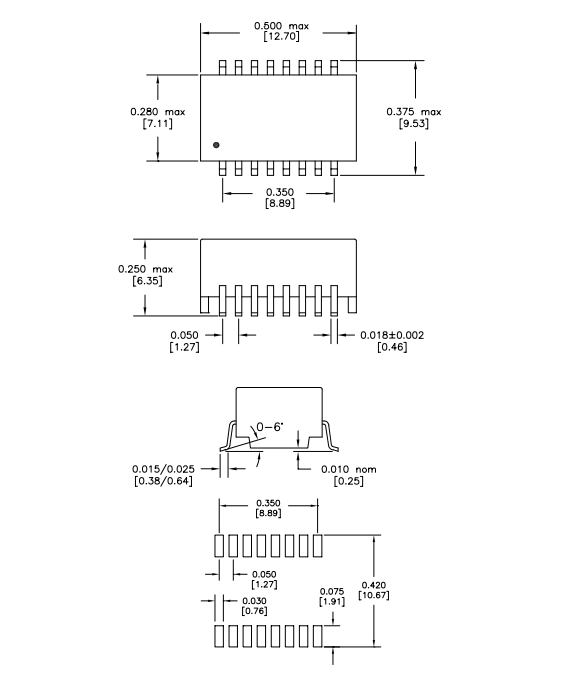

TG110-E050N5RL Recommended Solder Pad Dimensions:

TG110-E050N5RL

16 Pin LAN Transformer

Magnetics Transformer

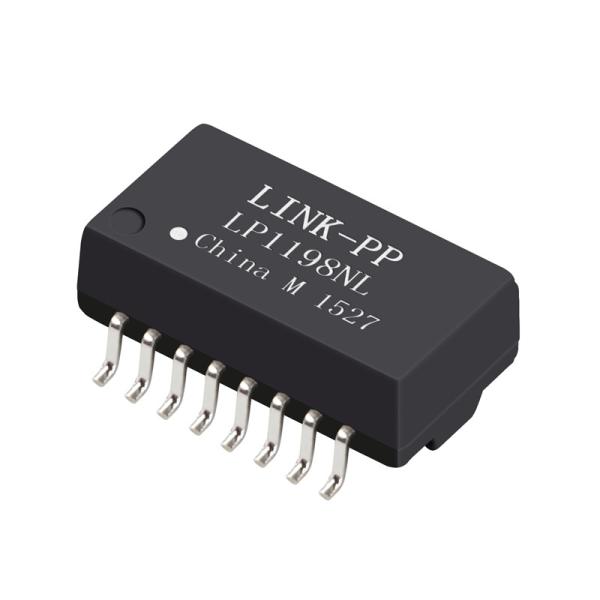

16 Pin LAN Transformer SMD 10/100Base-T TG110-E050N5RL Magnetics Images
