Name: GST5009C LF 1000 BASET Magnetics Modules Gigabit Transformer
Brand: LINK-PP
Price: 0.06 USD

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : GST5009CLF

MOQ : 400/2000/10K/25K

Price : $0.06-$1.2

Packaging Details : T&R

Delivery Time : in Stock Ship Today

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

P/N : GST5009C LF

LINK-PP P/N : LP82455NL

Data Rate : 1G

PoE : 350mA Per Pair

Mounting : SMD

Free Samples : Available

Series : Discrete LAN Magnetics

Mechanical : 15.10x10.00x4.00mm

Contact Now

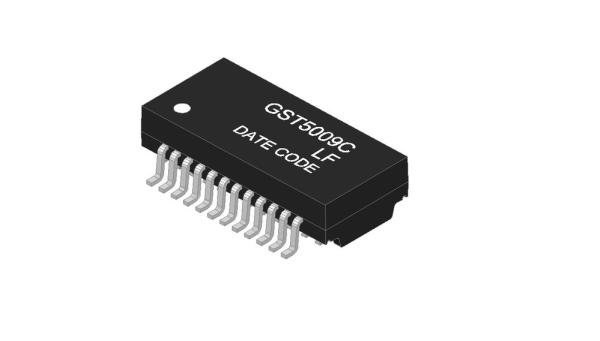

GST5009C LF / LP82455NL – 1000BASE-T Gigabit Ethernet Transformer

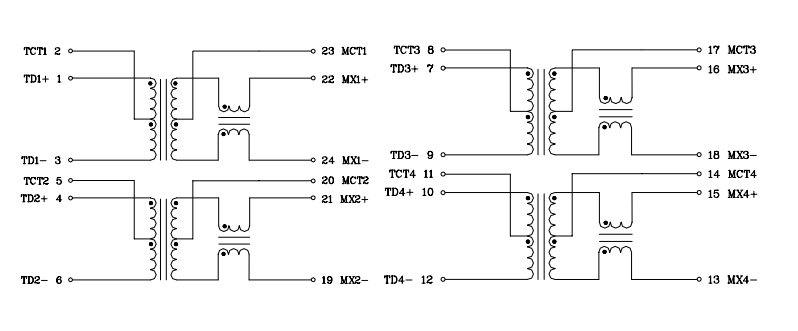

Coil Number: 8
Coil Structure: Toroidal
Package: SMT, 24 Pins
Type: Single-Port Gigabit Ethernet Transformer
Applications: Optimized for 1000BASE-T full-duplex Ethernet, including long-haul transmission systems.
Cable Support: Designed to support 4 pairs of Category 5 UTP cable for reliable gigabit data transfer.
Performance Benefits: Provides cable interface isolation and ensures low common-mode emissions for stable operation.
Standards Compliance:
- IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
- IEEE 802.3af (PoE / Power over Ethernet)
- RoHS & Halogen-Free compliant
Environmental Ratings:
- Operating Temperature: 0℃ to +70℃
- Storage Temperature: -25℃ to +85℃

Parameter	Test Condition	Value
Turns Ratio	50KHz, 0.5V	1CT : 1CT ± 2%
Inductance (Ls)	100KHz, 0.1V, 12mA DC Bias	350 µH Min
Insertion Loss	1–100 MHz	-1.4 dB Max
Return Loss	1–30 MHz	-16 dB Min
Return Loss	40 MHz	-14.4 dB Min
Return Loss	50 MHz	-13.1 dB Min
Return Loss	60–80 MHz	-12 dB Min
Return Loss	100 MHz	-10 dB Min
Differential to Common Mode Rejection	30 MHz	-45 dB Min
Differential to Common Mode Rejection	60 MHz	-40 dB Min
Differential to Common Mode Rejection	100 MHz	-35 dB Min
Crosstalk	30 MHz	-40 dB Min
Crosstalk	60 MHz	-35 dB Min
Crosstalk	100 MHz	-30 dB Min
Hi-Pot Test	—	1500 Vrms Min
