H1164NL Ethernet Transformer Modules H1164 , Quad Port H1164NLT 10/100Base-TX

  • 1
  • 2

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : H1164NL / H1164 / H1164NLT

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Packaging Details : T&R

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Model No : H1164NL / H1164 / H1164NLT

Transformer Type : 10/100 Mbps 4 Ports

Turns Ratio : 1:1

Mounting Type : SMT / SMD

Height - Seated (Max) : 5.72 mm

Size / Dimension : 28.45 mm X16.00 mm

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

H1164NL Ethernet Transformer Module H1164 , Quad Port H1164NLT 10/100Base-TX

H1164NL / H1164NLT 1:1 TransformerQuad Transformer10/100 Base-T SMT


Key Description:

H1164NL / H1164NLT 10/100BASE-TX TRANSFORMER MODULES For Auto MDI/MDIX Applications

RoHS peak reflow temperature rating 245°C
Symmetrical transmit and recieve channels for Auto
MDI/MDIX capability
Approved for use with the Broadcom BCM5226
and Level One LXT9784
Meets IEEE 802.3 specification

Competitive Advantage

☛ Designer and Manufacturer for 18 years.

☛ 2500 Works, 4 plants

☛ Definitely Pass Fluke network analyzer

☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.

Number of portsApplicationsTurns RatioPower Over Ethernet
Quad Port10/100Base-T1:1--

PackagingTab DirectionMounting TypeContact Finish
Reel , Carton--SMT/SMD--

Pins NumberShieldingIsolation VoltageLED Color
40 Pins--1500 Vrms---

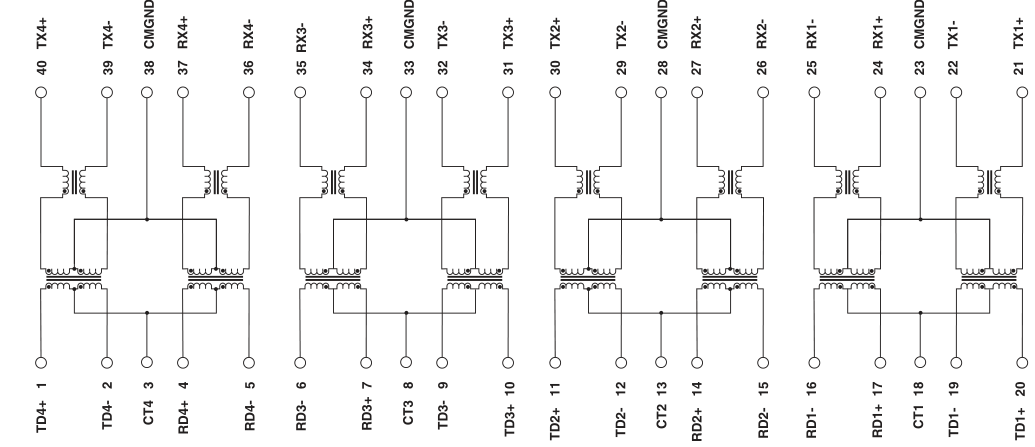

H1164NL Ethernet Transformer Modules H1164 , Quad Port H1164NLT 10/100Base-TX

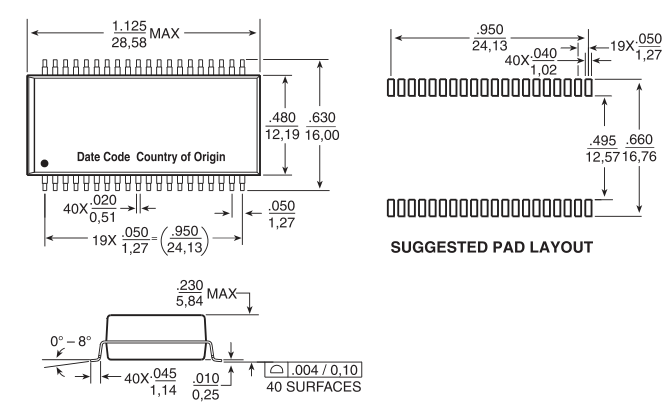

H1164NL Ethernet Transformer Modules H1164 , Quad Port H1164NLT 10/100Base-TX

H1164NL Ethernet Transformer Modules H1164 , Quad Port H1164NLT 10/100Base-TX
H1164NL40SS1041AXLF40SS1041E LFH1164NLT
40SS1041AX HFH1164NLT H1140NL S558-5999-M8-F
40ST1041AX XTFZ-M-3007A-MOATG04-0406NSRLS558-5999-P3-F
1-1840257-6PH406466G XTFZ-M-3007A-C-MOAS558-5999-Z5-F
1-1840257-7H1164NLTG05-2004NCRLXTFZ-M-3007A-C-MOA
40ST1041AX 40SS1041AX HFTG10G-RP02NJLFSI-50152-F
HST-1026DRH40537MN 40SS1041AXLFSI-52007-F
40SS1041E LFXTFZ-M-3007A-MOATG110-RPE17NV6RLH1164NL
2-1840257-2H1164NLPH406466G PM45-1040M
40ST1041AX XTFZ-DHS1623CC2TG110-S101N6RLXTFZ-M-3007A-C-MOA
XTFZ-M-3007A-MOA40ST1041AX TG111-E112NYRL40SS1041AX HF
H116440SS1041AX HFH1164NLT SI-53019-F
HST-1026DRXTFZ-M-3007A-MOATG1G-E012NZRL81FB-22NL

H1164NL Ethernet Transformer Module H1164 , Quad Port H1164NLT 10/100Base-TX
