H1012NL Lan Isolation Transformer 10/100 Base - T Single Port Modular Connector

Name: H1012NL Lan Isolation Transformer 10100 Base T Single Port Modular Connector
Brand: LINK-PP
Price: 0.06 USD

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : H1012NL

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Packaging Details : T&R

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

PN : H1012NL

Made In China : SM-LP1012NLE

Interface : 10/100 Base-t

Samples : Free Available

Number of Ports : Single Port

Application - Lan : Ethernet (NON PoE)

Package : SMD

Temperature : 0℃ TO 70℃

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

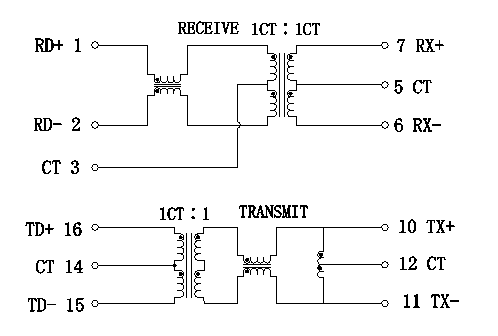

H1012NL Lan Isolation Transformer 10/100Base-T Single Port Modular Connector

1.Single Port Lan Transformer

2.ColiStructure: Toroidal

3.100base-t transformer

4.SMD, 16 pins

Electrical Specifications @25℃
1.Turns Ratio:
TX = 1CT∶1 RX = 1CT∶1CT
2.OCL: 350uH MIN
@100KHz,100mV,8mA DC Bias
3.Insertion Loss:
0.1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN @100Ω):
1-30MHz:-20 40MHz:-20
50MHz:-18 60-80MHz:-14
5.Crosstalk(dB TYP):
30MHz:-50 60MHz:-40
100MHz:-40
6.DCMR(dB MIN):
30MHz:-42 60MHz:-36
100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃～70℃

H1012NL Lan Isolation Transformer 10/100 Base - T Single Port Modular Connector

Application:

● HUB,

● PC card,

● Switch,

● Router,

● SDH,

● PDH,

● IP Phone,

● xDSL modem,

● PC Main board.
