XFRM SIN 100D 1:1 SMT H1197NL Transformers Power over Ethernet Magnetic Modules

  • 1
  • 2
  • 3

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : H1197NL

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Packaging Details : T&R

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Model : H1197NL

Category : Transformers Audio & Signal

Frequency Range : 1 MHz to 100 MHz

Application : Power over Ethernet Magnetic Modules

Termination Style : SMD/SMT

solation Voltage : 1.5KV

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

XFRM SIN 100D 1:1 SMT H1197NL Transformers Power over Ethernet Magnetic Modules

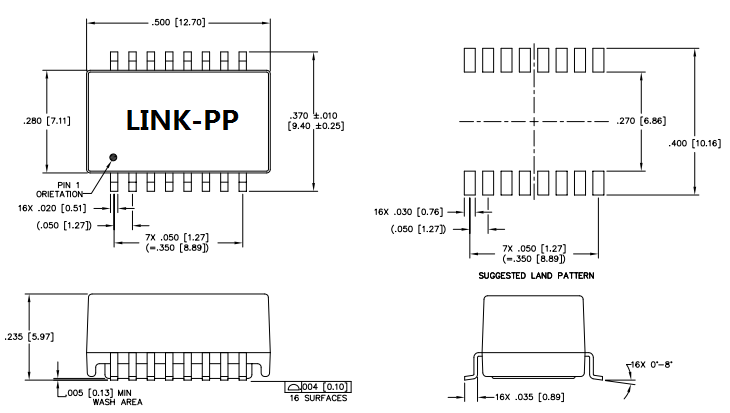

XFRM 1:1 SMT H1197NL Transformers H1197NLDatasheet/Price/Cross H1197NL Specifications

LP1197NL Equivalent Part / Cross Compatible Specification

Electrical Specifications @25℃


1.Insertion Loss:
1-100MHz:-1.2dB Max
2.Return Loss:
1-30MHz:-16dB Min
40MHz:-14dB Min
50MHz:-13dB Min
60-80MHz:-12dB Min
3.Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min
4.Differential to Common Mode Rejection:
30MHz:-43dB Min
60MHz:-37dB Min
100Mhz:-33dB Min
5.Isolation Voltage:1500Vrms
6.Operating Temperature: -40℃～+85℃.

NOTES:

Lan Magnetics Transformer / Lan transformer sheet
Lan Discrete Transformer Modules / Lan transformer we Rj45Lan 10/100 baset
transformer ethernet / Lan transformers

Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
With various Turns Ratios.
RoHS"NL" peak solder rating 245℃.

XFRM SIN 100D 1:1 SMT H1197NL Transformers Power over Ethernet Magnetic Modules
XF10B1Q1 H1197NL XFGIB1009 XF35066B1 XFATM8Q11A
XF10B1Q1A XF20064B2 XFGIB1009POL XF3506SIP XFATM8Q12
XF10B1Q2 XF20064B3 XFGIB100B XF3506T2 XFATM8Q12A
XF10B1Q3 XF20064B4 XFGIB100C XF3506T4 XFATM8Q13
XFVOIP-02 H1197NL XFGIB100HP XF5100T4 XFATM8Q13A
XFVOIP-03 XF20064CS H1197NL XF5208Q1 XFATM8Q14
XFVOIP-03Q XF20064CS1 XFGIB100MA XF5208Q2 XFATM8Q14A
XFVOIP-04 XF20064CS3 XFGIB100MB XF5208Q3 XFATM8Q14D
XFVOIP-05 XF20064R XFGIB100POL XF5208Q4 XFATM8Q15A
XFVOIP-05Q XF20065A XFGIB1011 XF6611TX XFATM8Q15C
XFVOIP-06 XF20065B H1197NL XF6611TX1 XFATM8Q16
XFVOIP-07 XF200667B XFGIB1012POL XF6611TX1B XFATM8Q1IT
XFVOIP-07A XF200667D XFGIB1013 XF6611TX1P XFATM8Q2
XFVOIP-08 XF200668B XFGIC100 XF6611TX2 XFATM8Q22
XFVOIP-09 XF200669B XFGIC100POL XF6611TX2B XFATM8Q24
XFVOIP5-STACK8-4 XF20066B H1197NL XF6611TX2P XFATM8Q25
XF6001 XF2006A XFGID100POL XF6611TXB XFATM8Q26
XF6003 XF6007 XFGIF100 XF6611TXP XFATM8Q3
XF6003A XF6007A XFGIH100 XF6612TX XF6612TX2P
XF6004 XF6017 XFGIJ100POL XF6612TX1 XF6612TX3B
XF6005 XFEPIG-01 XFVOIP-01 XF6612TX1B XF6612TX3M
XF6005B XFEPIG-02 XFEPIG-03A XF6612TX1P XF6612TX4

XFRM SIN 100D 1:1 SMT H1197NL Transformers Power over Ethernet Magnetic Modules

XFRM SIN 100D 1:1 SMT H1197NL Transformers Power over Ethernet Magnetic Modules
