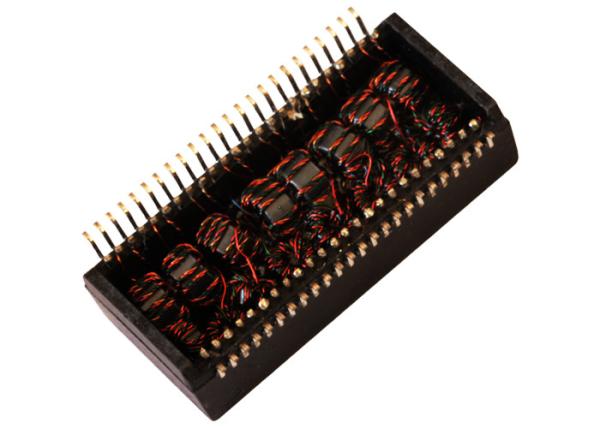

GS5014 / GS5014 LF Dual Ports LAN Transformer LP5014NL Discrete LAN Magnetics

Name: GS5014 GS5014 LF Dual Ports LAN Transformer LP5014NL Discrete LAN Magnetics
Brand: LINK-PP
Price: 0.06 USD

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : GS5014

MOQ : 400/2000/10K/25K

Price : $0.06-$1.2

Packaging Details : T&R

Delivery Time : About 1-2 Days

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Specifications : GS5014 / GS5014 LF

Speed : Gigabit

Number of Ports : Dual

Type : Discrete LAN Magnetics

Package : SMD

PIN number : 48

Temperature : 0℃ to +70℃

Available Archives : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

GS5014 / GS5014 LF Gigabit Ethernet Transformer Quick Details

General Information:

Product Name: GS5014 LF Discrete LAN Magnetics.
Application: Designed for Ethernet 100/1000 BASE-T, full duplex applications.
Type: SMD 1000 BASE-T Dual Port Discrete LAN Magnetics.

Key Features:

Supports 8 pairs of Category 5 UTP cable.
Provides a cable interface for isolation and low common-mode emissions.
Compliant with the IEEE 802.3ab standard for 1000 BASE-T.
Supports Power over Ethernet (PoE) applications with a 350mA current capability.
Complies with RoHS and Halogen-Free requirements.

Operating and Storage Temperatures:

Operating Temperature Range: 0°C to +70°C.
Storage Temperature Range: -25°C to +85°C.

Specifications of GS5014 / GS5014 LF 100/1000 BASE-T Magnetics Modules

Parameter	Value
Turns Ratio (TX/RX)	1CT:1CT (±5%)
Open Circuit Inductance (OCL)	350 µH (Min) @ 100KHz/0.1V with 8mA DC Bias
Leakage Inductance (L.L)	0.5 µH (Max)
Winding Capacitance (CW/W)	1.2 pF (Max)
DC Resistance (DCR)	1.2 Ω (Max)
High Potential (HI-POT)	AC 1500V / 1mA

Parameter	Frequency	Value
Insertion Loss	1-100MHz	-1.0 dB (Max)
Return Loss	1-30MHz	-18 dB (Min)
	40MHz	-16 dB (Min)
	50MHz	-14.08 dB (Min)
	60-80MHz	-12.5 dB (Min)
	100MHz	-10 dB (Min)
Crosstalk	30MHz	-40 dB (Min)
	60MHz	-35 dB (Min)
	100MHz	-30 dB (Min)
Common Mode Rejection Ratio (DCMR)	30MHz	-43 dB (Min)
	60MHz	-37 dB (Min)
	100MHz	-33 dB (Min)

GS5014 / GS5014 LF Datasheet--Schematic

GS5014 / GS5014 LF Dual Ports LAN Transformer LP5014NL Discrete LAN Magnetics
