2x Rj45 10/100/1000Mbps Pulse JG0-0023NL Equivalent Cross , Gigabit Dual RJ45

Name: 2x Rj45 101001000Mbps Pulse JG00023NL Equivalent Cross Gigabit Dual RJ45
Brand: LINK-PP
Price: 0.11 USD

2x Rj45 10/100/1000Mbps Pulse JG0-0023NL Equivalent Cross , Gigabit Dual RJ45 Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : SGS, UL,CE, ISO9001:2008,REACH

Model Number : JG0-0023NL

MOQ : 50/500/1000/25K

Price : $0.11-$12

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Specification : JG0-0023NL

Part No : LPJG28851AFNL

Ethernet : 2 x 10/100/1000Mbps

Gender : Female,Receptacle

Indicator : Green LED Flexible

Samples : Available

Contact Now

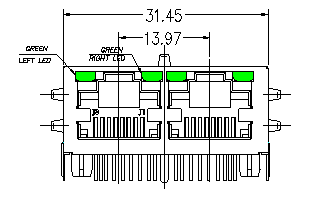

2x Rj45 10/100/1000Mbps Pulse JG0-0023NL Equivalent Cross , Gigabit Dual RJ45

2x Rj45 10/100/1000Mbps LPJG28851AFNL
Pulse JG0-0023NL Equivalent
1X2 Tab-up Gigabit Rj-45
Through hole RJ45 modular jack Dual Port
25.4 mm length RJ45 Magjack

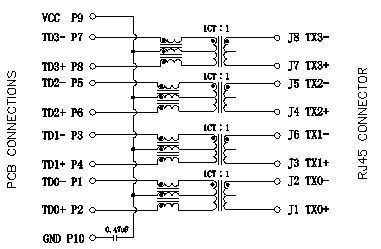

10/100/1000 Base-T RJ45 1xN Tab-UP Integrated Connector Module

Electrical Specifications @25℃
1.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
2.Insertion Loss:
1～100MHz:-1.0dB MAX
3.Return Loss:
1～10MHz:-20dB MIN.load 100Ω%%P15Ω
30MHz:-16dB MIN.load 100Ω%%P15Ω
60～80MHz:-12dB MIN.load 100Ω%%P15Ω
4.Crosstalk:
1～10MHz:-40dB MIN
30～60MHz:-35dB MIN
60～100MHz:-30dB MIN
5.Common Mode Rejection:
1～125MHz:-30dB MIN
125～500MHz:-20dB MIN
6.HiPot Test: 1500Vrms MIN
7.Operating Temperature: 0℃ TO +70℃.
