Pulse JG0-0024NL Replacement UTP RJ45 2x 10/100/1000 Base-T Tab-UP Module

Name: Pulse JG00024NL Replacement UTP RJ45 2x 101001000 BaseT TabUP Module
Brand: LINK-PP
Price: 0.11 USD

Pulse JG0-0024NL Replacement UTP RJ45 2x 10/100/1000 Base-T Tab-UP Module Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : SGS, UL,CE, ISO9001:2008,REACH

Model Number : JG0-0024NL

MOQ : 50/500/1000/25K

Price : $0.11-$12

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Part No : LPJG28851AWNL

Specification : JG0-0024NL

Plating : UTP 2x RJ45

Gender : Female,Receptacle

Indicator : Green LED Flexible

Samples : Available

Contact Now

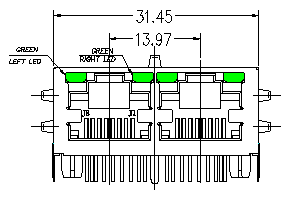

Pulse JG0-0024NL Replacement UTP RJ45 2x 10/100/1000 Base-T Tab-UP Module

Pulse JG0-0024NL 10/100/1000 Base-T Equivalent
1X2 Tab-up LPJG28851AWNL
UTP 2x RJ45 Gigabit Network
25.4mm length RJ45 Magjack

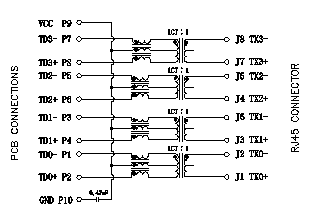

Electrical Specifications @25℃
1.Turns Ratios: 1CT∶1
2.OCL(@100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1～100MHz:-1.0dB MAX
4.Return Loss:
1～10MHz:-20dB MIN.load 100Ω%%P15Ω
30MHz:-16dB MIN.load 100Ω%%P15Ω
60～80MHz:-12dB MIN.load 100Ω%%P15Ω
5.Crosstalk:
1～10MHz:-40dB MIN
30～60MHz:-35dB MIN
60～100MHz:-30dB MIN
6.Common Mode Rejection:
1～125MHz:-30dB MIN
125～500MHz:-20dB MIN
7.HiPot Test: 1500Vrms MIN
8.Operating Temperature: 0℃ TO +70℃.

Product Tags:

multi port connector

modular jacks rj45

Pulse JG0-0024NL Replacement UTP RJ45 2x 10/100/1000 Base-T Tab-UP Module Images
