LPJK0071AWNL | JK0654219NL Pulse RJ45 Modular Jack,10/100/1000Base-T

Name: LPJK0071AWNL JK0654219NL Pulse RJ45 Modular Jack101001000BaseT
Brand: LINK-PP
Price: 0.05 USD

LPJK0071AWNL | JK0654219NL Pulse RJ45 Modular Jack,10/100/1000Base-T Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : JK0654219NL

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Packaging Details : 50pcs/tray,1200pcs/carton

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Specifications : JK0654219NL

P/N : LPJK0071AWNL

Ethernet : 1x 10/100/1000Base

Mechanical : 33.02x16.60x13.50mm

Mounting : THT

Samples : Free

Contact Now

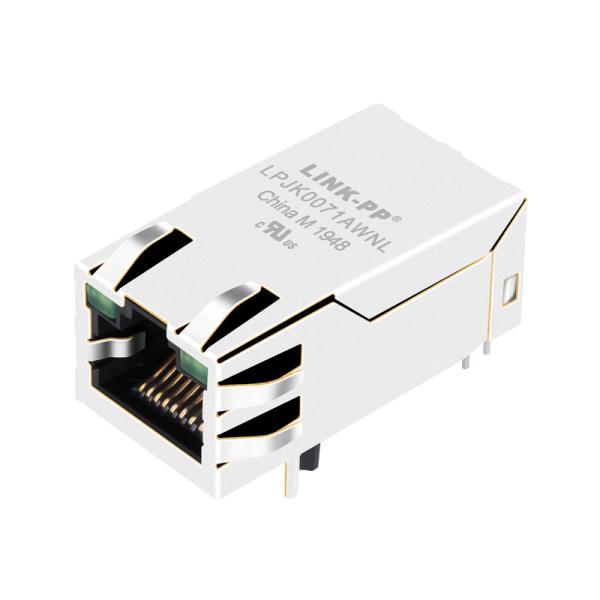

LPJK0071AWNL | JK0654219NL Pulse RJ45 Modular Jack,10/100/1000Base-T

10/100/1000 Base-T RJ45 single port (1x1) Tab-UP with or without LEDs integrated magnetics connector
(ICM), designed to support applications, such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM),
and PC applications.

LINK-PP LPJK0071AWNL Compatible to JK0654219NL

Features and Benefits

Single port Tab-UP with internal magnetics for 10/100/1000 Base-TX Available with or without LEDs
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP Internal magnetics are 100% electrically tested for HI-POTand functionality

Electrical Performance Summary

Internal magnetics options available
Meets or exceeds IEEE 802.3ab standard for 1000Base-T
350 µH minimum OCL with 8 mA bias current
High performance for maximum EMI suppression
Minimum 1500 Vrms isolation per IEEE 802.3 requirement
