7499010121A Magnetic RJ45 Jack 10/100Base-TX Tab-up With LEDs

Name: 7499010121A Magnetic RJ45 Jack 10100BaseTX Tabup With LEDs
Brand: LINK-PP
Price: 1 USD

7499010121A Magnetic RJ45 Jack 10/100Base-TX Tab-up With LEDs Manufactures

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : 7499010121A

MOQ : 50/500/1000

Price : Supportive

Packaging Details : 50pcs/tray,1200pcs/carton

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

PN : 7499010121A

Made In China : SM-LPJ1014BGNL

Interface : 10/100Mbps

RoHS Compliant : yes

LED indicator : Optional

Samples : Available

Contact Now

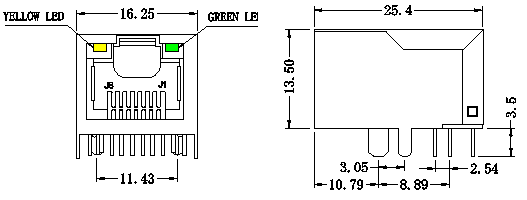

7499010121A Magnetic RJ45 Jack 10/100Base-TX LPJ1014BGNL Tab-up With LEDs

TEST NOTES(25±5℃)

1.TR:(100KHz,100mV);
TX=1CT∶1CT ±3% RX=1CT∶1CT ±3%P2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500Vrms
PINS(P4,P5,P6)TO (J3,J6)=1500Vrms
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃.

NOTES:

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec Max.
