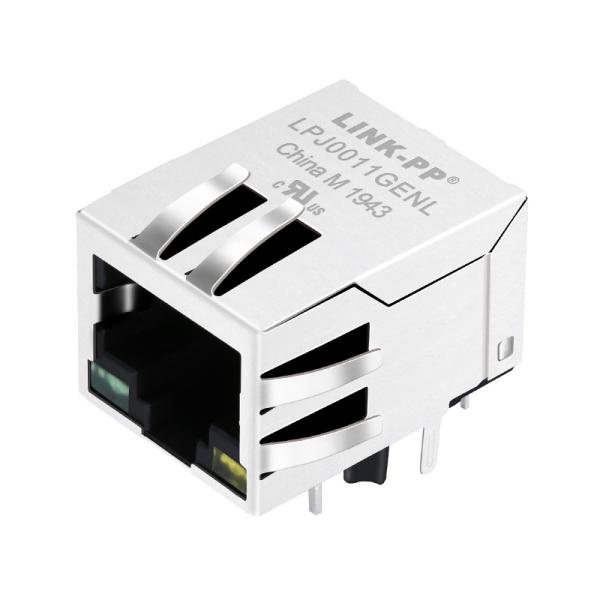

LPJ0011GENL 1x10/100 Magnetic RJ45 Modular Jack Cross 13F-64ERGYDPZ2NL
- LINK-PP LPJ0011GENL
- 10/100mbps Ethernet Female Rj45
- 1X1 Tab-down With LED
- With panel-tab on top,bottom,left & right sides
Description:
| Single Port Modular RJ45 Jack with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS |
| LINK-PP Part Number | LPJ0011GENL |
| YDS Part Number | 13F-64ERGYDPZ2NL / 13F-64GYDP2NL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.528 |
| Package Height (mm) | 13.40 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
