Name: 566058111 RJ45 With Integrated Magnetics LPJG16520A28NL Protocol converter
Brand: LINK-PP
Price: 1 USD

Brand Name : LINK-PP

Model Number : 5-6605811-1

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Specifications : 5-6605811-1

P/N : LPJG16520A28NL

Apllication : Magnetic RJ45 Jack 1000 BASE-T

Category : Connectors, Interconnects

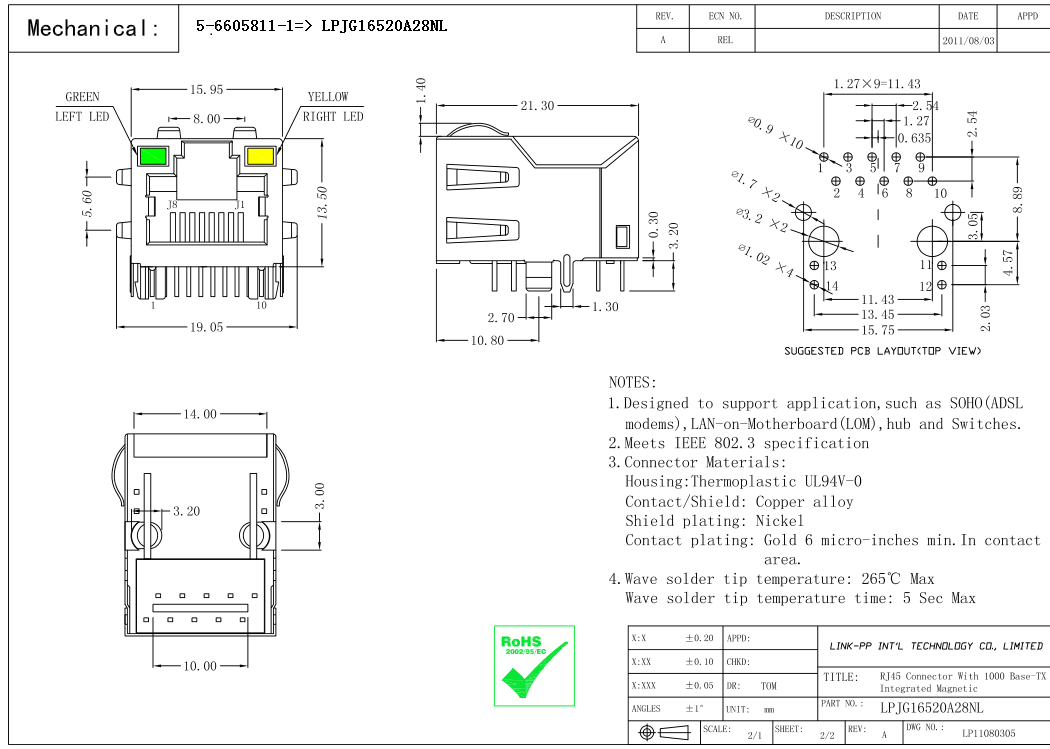

Mechanical : 21.30x15.90x13.40mm

Shield Material : Brass

Samples : Free

Contact Now

5-6605811-1 RJ45 With Integrated Magnetics LPJG16520A28NL Protocol converter

Specifications	P/N	Manufacturer	Description
5-6605811-1	LPJG16520A28NL	LINK-PP	CONN MAGJACK 10/100/1000 BASE-T

Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	LINK-PP Rj45	10/100/1000Base-T	Through Hole

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	G/Y	Shielded ,EMI
RJ-45 connector integrated with Filter Size same as RJ-45 connector to save PCB board space Reduce EMI radiation, Improve EMI performance High performance for maximum EMI suppression. ISO9001,SGS,UL,CE,REACH Embedded mini PCI express Cellular modemfrom SierraWireless Reduce EMI radiation, Improve EMI performance Certified on all major carrier networks,attractive for network interface cards(NICS)Single port, Multi-port and Stackable configurations (Thru-hole/ SMT) Reduces the number of components to be placed on the board Frees up board space and offers signal protection Noise reduction in the system Improved reliability and optimal system performance Benefits of having shorter signal paths and the reliability gains from systems containing fewer components Helps manufacturers reach their goals of cost reduction
