7499010211A THT 100BASE-TX RJ45 Female Connector LPJ0011BBNL

Name: 7499010211A THT 100BASETX RJ45 Female Connector LPJ0011BBNL
Brand: LINK-PP
Price: 1 USD

7499010211A THT 100BASE-TX RJ45 Female Connector LPJ0011BBNL Manufactures

Brand Name : LINK-PP

Model Number : 7499010211A (LPJ0011BBNL)

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Item : 7499010211A Modular RJ45 Jack

Family : WE-RJ45LAN sERIES

Data Rate : 100BASE-TX

Integrated Transformer : With

PoE Function : non-PoE

Samples : Free Available

Contact Now

7499010211A 1xRJ45 10/100Mbps Ethernet LPJ0011BBNL

The Wurth 7499010211A is a single port (1x1) RJ45 connector with integrated magnetics designed for 100BASE-TX applications. It features a tab-down latch, Green-Yellow LEDs for status indication, and through-hole (THT) mounting for secure PCB attachment.

Part Number	Cross Made In China	Manufacturer	Description
7499010211A	LPJ-0011BBNL	LINK-PP	100BASE-TX RJ45 Jacks with Integrated Magnetics

Connector Orientation	Mounting Type	Magnetics	LED Color
Right Angle	Through Hole	With	G/Y

Plastic Housing Material	Shielding Material	Contact Material	Shielding
Thermoplastic PA66 Black	Brass	Phosphor Bronze	Shielded
7499010211A Electrical Specifications: 1. Data Rate: 100Base-TX 2. Turns Ratio: 1:1(±2%) 3. Inductance: 350µH min @ 100 kHz/100 mV 4. Insulation Test Voltage: 2250V DC 1 min. 5. Insertion Loss: -1dB MAX 1-100 MHz 6. Return Loss -18dB MIN @ 1-30 MHz -12dB MIN @ 30-60 MHz -10dB MIN @ 60-80 MHz -10dB MIN @ 80-100 MHz 7. Crosstalk -30dB MIN @ 1-60 MHz -30dB MIN @ 60-100 MHz 8. Common Mode Rejection Ratio -30dB MIN @ 1-30 MHz -30dB MIN @ 30-60 MHz -30dB MIN @ 60-100 MHz

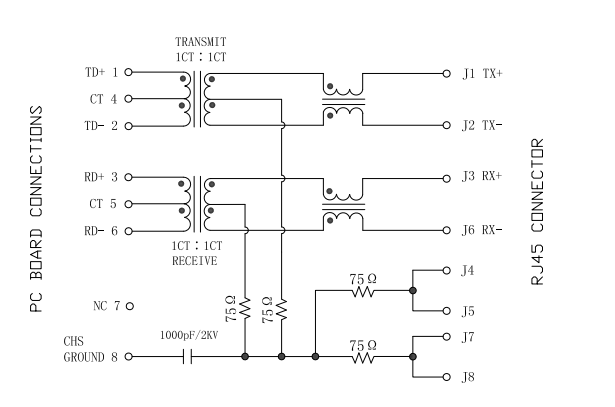

LPJ0011BBNL Schematic

7499010211A THT 100BASE-TX RJ45 Female Connector LPJ0011BBNL

LPJ0011BBNL Storage Conditions Notes:

• It is not recommended to store LINK-PP RJ45 Connectors for longer than 12 months. Among other effects, terminals may be affected and Degraded, resulting in poor solderability. Therefore, all products should be used within 12 months from the date of shipment.
• Do not expose modules to direct sunlight.
• The storage conditions specified in the original packaging apply to the storage time of the components and not to the transit time.
