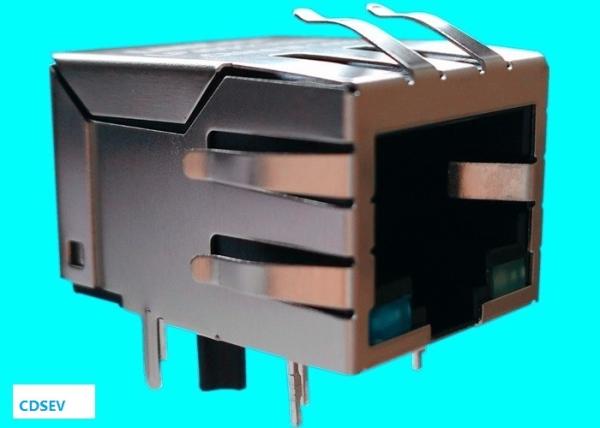

Cross MIC3801D-5166 RJ45 With Integrated Magnetics LPJG0820G4NL

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Cross MIC3801D5166 RJ45 With Integrated Magnetics LPJG0820G4NL
Brand: LINK-PP
Price: 0.5 USD

Brand Name : LINK-PP

Model Number : MIC3801D-5166

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : 0.5~10 USD/PCS

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

part Number : MIC3801D-5166

Specification : MIC3801D-5166

Cross&Datasheet : LPJG0820G4NL

Apllication : 10/100/1000Base-T

Original Munafactuer : LINK-PP

Project Application : NETWORK INTERFACE CARD

Contact Now

Cross Part Number	Manufacturer Part Number	Manufacturer	Description
MIC3801D-5166	LPJG0820G4NL	LINK-PP	MIC3801D-5166 RJ45 With Integrated Magnetics LPJG0820G4NL Gigabit IP Ethernet
Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	LINK-PP Rj45	10/100/1000 Mbps	Thru-Hole

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	Y&G/Y&G	Shielded ,EMI-Finger
RJ-45 connector integrated with Filter Size same as RJ-45 connector to save PCB board space Reduce EMI radiation, Improve EMI performance High performance for maximum EMI suppression. ISO9001,SGS,UL,CE,REACH Embedded mini PCI express Cellular modemfrom SierraWireless Reduce EMI radiation, Improve EMI performance Certified on all major carrier networks,attractive for network interface cards(NICS)Single port, Multi-port and Stackable configurations (Thru-hole/ SMT) Reduces the number of components to be placed on the board Frees up board space and offers signal protection Noise reduction in the system Improved reliability and optimal system performance Benefits of having shorter signal paths and the reliability gains from systems containing fewer components Helps manufacturers reach their goals of cost reduction

Cross MIC3801D-5166 RJ45 With Integrated Magnetics LPJG0820G4NL

Product Tags:

stacked rj45 connectors
