5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL

Name: 566057281 10100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL
Brand: LINK-PP
Price: 1 USD

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL Manufactures

Brand Name : LINK-PP

Model Number : 5-6605728-1

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

part Number : 5-6605728-1

Made In China : SM-LPJ16115A28NL

Cross&Datasheet : LPJ16115A28NL

Apllication : 10/100/ Base-T

Original Munafactuer : LINK-PP

Samples : Free Active

Contact Now

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL

5-6605728-1 Electrical Specifications @25℃
1.Impedance:100 OHMS
2.Turns Ratio:
TX=1CT∶1 RX=1CT∶1CT
3.Inductance OCL: 350uH Min
@100KHz,0.1Vrms,8mA DC Bias.
4.Insertion Loss:
0.5MHz-100MHz: -1.1dB Max
5.Return Loss(dB Min):
0.5-30MHz:-18
30.1-60MHz:-[18-20log(f/30)]
60.1-80MHz:-12
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-[33-20log(f/50)]
7.Common Mode Rejection Ratio:
0.5-100MHz:-30dB Min
8.Isolation Voltage: 1500Vrms
9.Operating Temperature: 0℃～70℃.

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL

Product Tags:

stacked rj45 connectors

rj45 magnetic jack

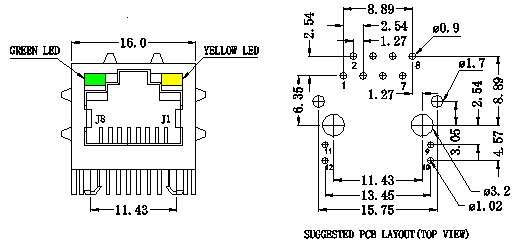

5-6605728-1 10/100 Ethernet Circuit Shielded Decouping Capacitor LPJ16115A28NL Images
