Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector

LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

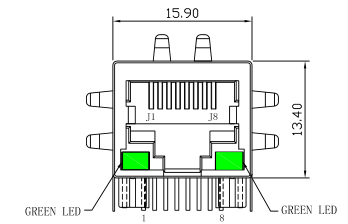

Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPJ0011GFNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Specification : LPJ0011GFNL

P/N : LPJ0011GFNL

Ethernet : 1x10/100Mbps

Turn ratio : 1CT:1CT

Hi-pot : 1500VRMS

Samples : Available

Contact Now

Green LED Rj45 , LPJ0011GFNL10/100Mbps Ethernet 90 Degree 8Pins Connector

Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.

NOTES: Green LED Rj45 , LPJ0011GFNL 10/100Mbps Ethernet 90 Degree 8Pins Connector
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
