Surface Mount 7490200110 Discrete Single Port Gigabit 24 Pins Magnetics

Name: Surface Mount 7490200110 Discrete Single Port Gigabit 24 Pins Magnetics
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : 7490200110

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : 7490200110

P.N : LP82440NL

Family : Ethernet Magnetic Transformer

Mounting : Surface Mounting

Pins : 24 Pins

Samples : Free Available

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

Surface Mount 7490200110 Discrete Single Port Gigabit 24Pins Magnetics

7490200110

Trader Part Number

7490200110

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LP82440NL

Manufacturer

LINK-PP China

Description

Ethernet Transformer Modules

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

7490200110 Product Features:

Electrical Specifications @25℃
1.Turn Ratio(TX/RX):
Pri:Sec=1CT:1CT ±5%P2.Inductance OCL: 350uH Min
@100KHz/0.1V 8mA DC BLAS
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss:
1-30MHz:-18dB Min
40MHz:-14.4dB Min
50MHz:-13.1dB Min
60-80MHz:-12dB Min
5.Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min
6.DCMR:
30MHz:-40dB Min
60MHz:-35dB Min
100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃～70℃

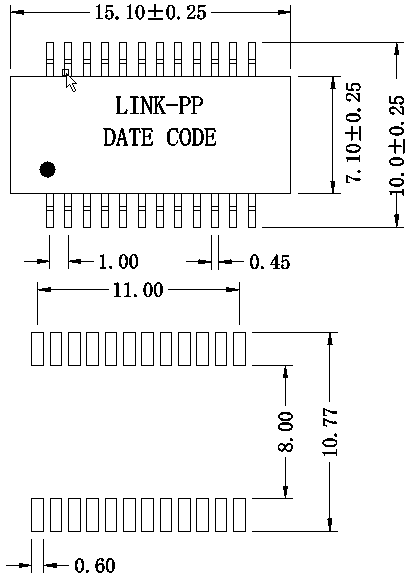

Surface Mount 7490200110 Discrete Single Port Gigabit 24 Pins Magnetics

Surface Mount 7490200110 Discrete Single Port Gigabit 24Pins
