10/100Base-T Pulsejack JXD1-0005NL Rj45 Power Over Ethernet 350mA 57V Continuous

Name: 10100BaseT Pulsejack JXD10005NL Rj45 Power Over Ethernet 350mA 57V Continuous
Brand: LINK-PP
Price: 0.09 USD

10/100Base-T Pulsejack JXD1-0005NL Rj45 Power Over Ethernet 350mA 57V Continuous Manufactures

Brand Name : LINK-PP

Model Number : JXD1-0005NL

Certification : ISO9001,SGS,UL,CE,REACH163

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray & Carton&Reel

Designe PN# : JXD1-0005NL

Made In China : LPJ16666CNL

Family : POE Rj45 Connector

Interface : 10/100Base-T

LED : Flexible

Samples : Free Available

Contact Now

10/100Base-T Pulsejack JXD1-0005NL Rj45 Power Over Ethernet 350mA 57V Continuous

JXD1-0005NL

Spec Equivalent

JXD1-0005NL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China Analogue

LPJ16666CNL Compatible

Manufacturer

LINK-PP China

Description

10/100M Modular Rj45

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

JXD1-0005NL Electrical Specifications @25

1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.Power Over Ethernet: 350mA@57V Continuous

10/100Base-T Pulsejack JXD1-0005NL Rj45 Power Over Ethernet 350mA 57V Continuous

Product Tags:

poe rj45 pinout

rj45 power over ethernet

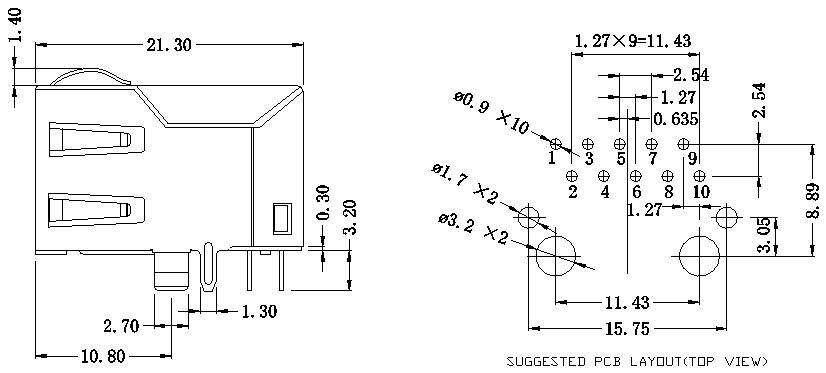

10/100Base-T Pulsejack JXD1-0005NL Rj45 Power Over Ethernet 350mA 57V Continuous Images
