JP006821UNL 100 Base-TX Fast Ethernet 1x1 Tab-UP with LEDs 8-pin RJ45

Name: JP006821UNL 100 BaseTX Fast Ethernet 1x1 TabUP with LEDs 8pin RJ45
Brand: LINK-PP
Price: 1 USD

JP006821UNL 100 Base-TX Fast Ethernet 1x1 Tab-UP with LEDs 8-pin RJ45 Manufactures

Brand Name : LINK-PP

Model Number : JP006821UNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Designe PN# : JP006821UNL

Made In China : LPJ2006KONL

Family : Magnetic Rj45 jack

Interface : 100Mbps

LED : Flexible

Samples : Available

Contact Now

JP006821UNL 100 Base-TX Fast Ethernet 1x1 Tab-UP with LEDs 8-pin RJ45

PulseJack JP006821UNL

Trader Part Number

JP006821UNL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

LPJ2006KONL

Manufacturer

LINK-PP China

Description

10/100M Modular Rj45

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

JP006821UNL

Electrical Specifications @ 25℃
1.Turns Ratio:
TX=1:1 RX=1:1
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
0.3～100MHz:-1.2dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-16 40MHz:-13.5
50MHz:-11.5 60～80MHz:-10
5.Crosstalk(dB Min):
30MHz:-40 60MHz:-36
100MHz:-30
6.Differential to Common Mode Rejection:
30MHz:-35dB Min 60MHz:-32dB Min
100MHz:-30dB Min
7.Isolation Voltage:1500Vrms

JP006821UNL 100 Base-TX Fast Ethernet 1x1 Tab-UP with LEDs 8-pin RJ45

Product Tags:

stacked rj45 connectors

rj45 with magnetics

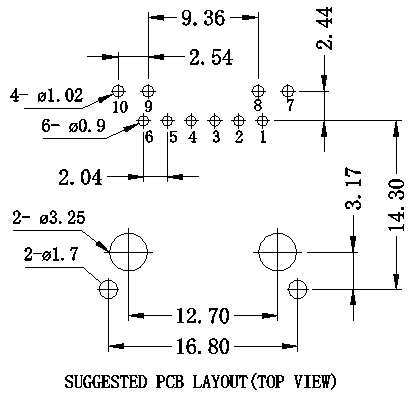

JP006821UNL 100 Base-TX Fast Ethernet 1x1 Tab-UP with LEDs 8-pin RJ45 Images
