GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL

Name: GST5009 LF Equivalent 1000 BASE T Gigabit MAGNETICS Pin to Pin LP82440NL
Brand: LINK-PP
Price: 0.06 USD

GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL Manufactures

Brand Name : LINK-PP

Model Number : GST5009 LF

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Spec : GST5009 LF

Substitute : LP82440ANL

Turns Ratio : 1CT : 1CT

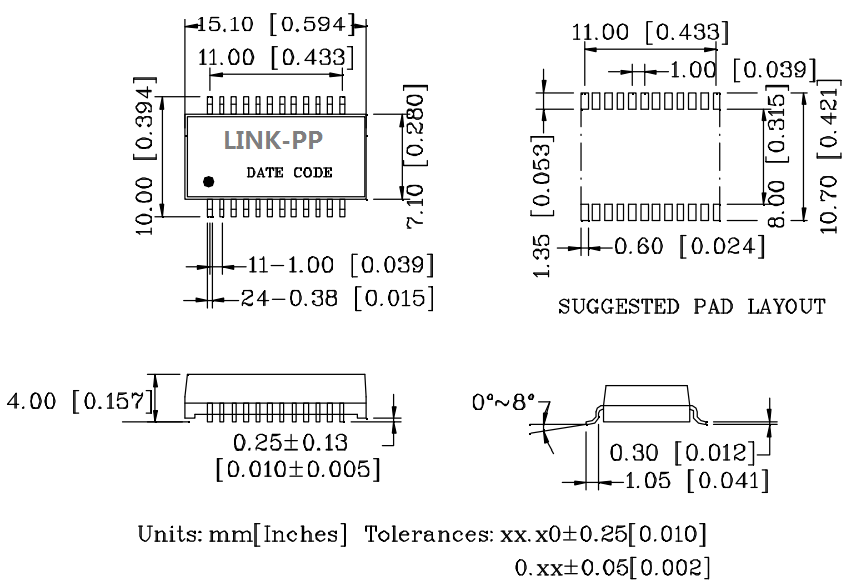

Size / Dimension : 15.1mm L x 10mm W

Hipot : 1500V

Samples : Free Available

Update : GST5009 LF = LP82440ANL

Contact Now

GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL

Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.

Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Compliant with IEEE 802.3ab standard for 1000 BASE-T.
Comply with RoHS requirements-whole part No Cd, No Hg, No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃. -40℃ to +85℃.
Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL

Inductance OCL: 350uH Min @ 100KHz 0.2V 8mA DC BIAS,
350mA Current Capability
Leakage Inductance: 0.50uH Max @ 100KHz 0.2V
Interwinding Capacitance: 25PF TYP @ 100KHz 0.2V
DC Resistance: 0.9Ω Max
Turn Ratio: 1CT:1CT±5%

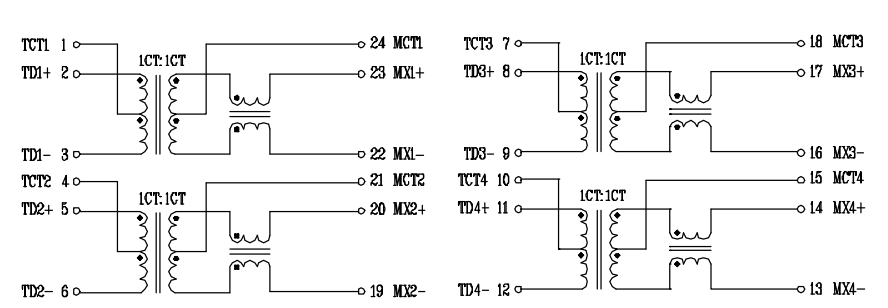

Polarity: 2-23,5-20 ,8-17,11-14In-Phase
Return Loss 0.5-30 MHz - 18dB Min
40.0MHz - 14.4 dB Min
50.0MHz - 13.1 dB Min
60-80MHz - 12.0 dB Min
Cross Talk: 0.50-60MHz - 40dB Min
60-100MHz -35dB Min
Common Mode Rejection: 0.5-100MHz - 20dB Min
Isolation HI-POT: 1500VAC 1mA 1S
Product Type: Green Product & Halogen Free Products

NOTES:

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias current.
4.RoHS"NL" peak solder rating 255±5℃.

Product Tags:

gigabit magnetics transformer

ethernet transformer

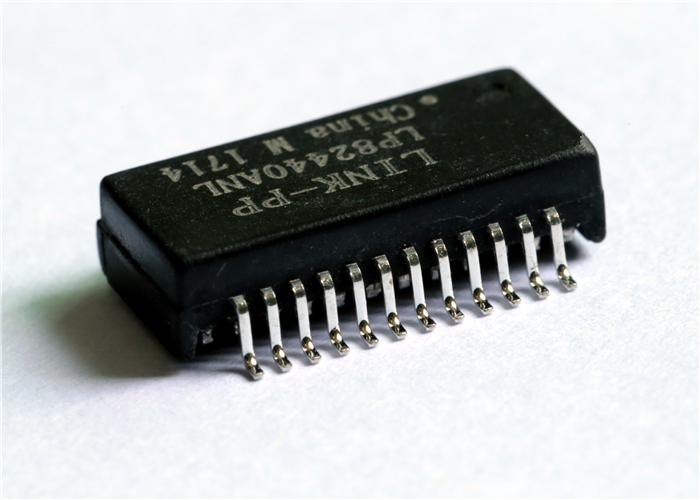

GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL Images
