20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter

Name: 20PT1024X LF 10100Base Dual Port Transformer 13F2010CNL PHT 20pins Filter
Brand: LINK-PP
Price: 0.06 USD

20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter Manufactures

Brand Name : LINK-PP

Model Number : 20PT1024X LF / 13F-2010CNL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

PN.1 : 20PT1024X LF / 13F-2010CNL

Application : FE Transformer

Turn Ratio : 1:1

Pins : 40

Hipot : 1500V

Mass Production : LP2064NL

Contact Now

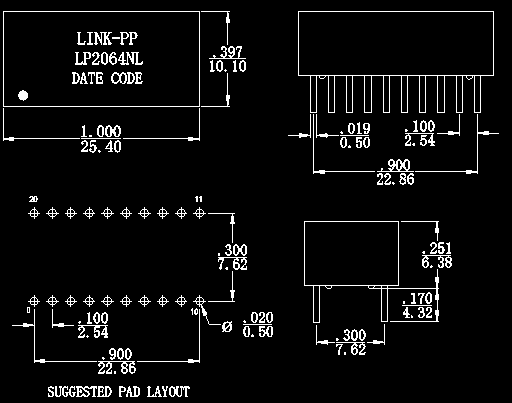

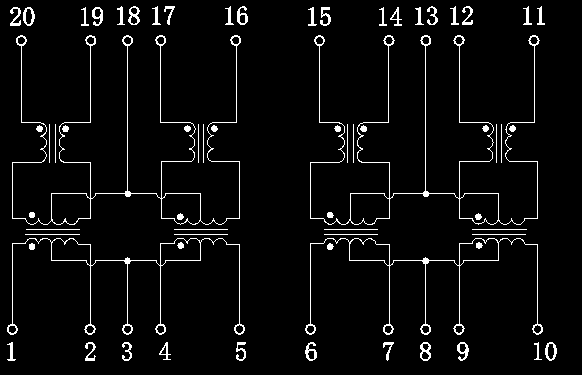

20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter

20PT1024X LF

13F-2010CNL

10/100 Transformer

1:1 Turn Ratio

Cross LP2064NL

Electrical Specifications @ 25°C

1.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
2.Pri OCL: 350uH MIN
@100KHz,0.1V,8mADC Bias.
3.Insertion Loss:
1-100MHz:-1.15dB MAX
4.Return Loss(dB MIN):
1-30MHz:-18 30-60MHz:-14
60-80MHz:-12
5.Crosstalk:
1-100MHz:-38dB MIN
6.CMRR: 1-100MHz:-40dB TYP
7.Hi-Pot: 1500Vrms @0.5mA
8.Operating Temperature: 0℃～70℃

20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter
0875-1G2T-E3	C855-2B4R-54	08B1-1X4T-36-F	0879-2C6R-54
13F-2010CNL	0833-2X6R-55-F	0833-2X1T-33-F	C850-2G6R-54
0826-1X4T-43-F	0810-2H6R-28-F	0811-2X4R-28-F	0854-2X8R-GK-F
L826-1X4T-23-F	20PT1024X LF	L826-1X4T-43-F	0895-2X6R-GK
13F-2010CNL	S553-6500-D8	S560-6600-GG	S553-6500-43
S553-1006-AE	S553-6500-D9	20PT1024X LF	S553-6500-44
S553-1084-01	S553-6500-E2	S560-6600-GK	13F-2010CNL
S553-1084-11	S553-6500-E3	S560-6600-GM	S553-6500-55
S553-1506-AE	S553-6500-E4	S560-6600-GV	S553-6500-58
13F-2010CNL	S553-6500-E5	20PT1024X LF	13F-2010CNL

NOTES:
1.For adapter cards,maus,hubs,and motherboard.applications
2.Designed to meet or exceed IEEE802.3,10Base-T specifications
3.Available with common mode chokes for EMI suppression
4.SMT,THT,DIP etc package
5.RoHS"NL" peak solder rating 260℃.
6.OCL,Cww and LL are measured at 20 mVrms,100KHz
