TG110-050N5RL SMD Single Port 10/100BASE-TX Transformer LP1198NL / SMST-1666

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: TG110050N5RL SMD Single Port 10100BASETX Transformer LP1198NL SMST1666
Brand: LINK-PP
Price: 0.08 USD

Brand Name : LINK-PP

Model Number : TG110-050N5RL / SMST-1666

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.08-$2.0

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : Stock

Packaging Details : T&R

P/N : TG110-050N5RL / SMST-1666

Turn Ratio : 1:1

Data Rate : 10/100Base-T

Number of Port : Single

PoE : Wtthout

Mounting : Surface Mount

Contact Now

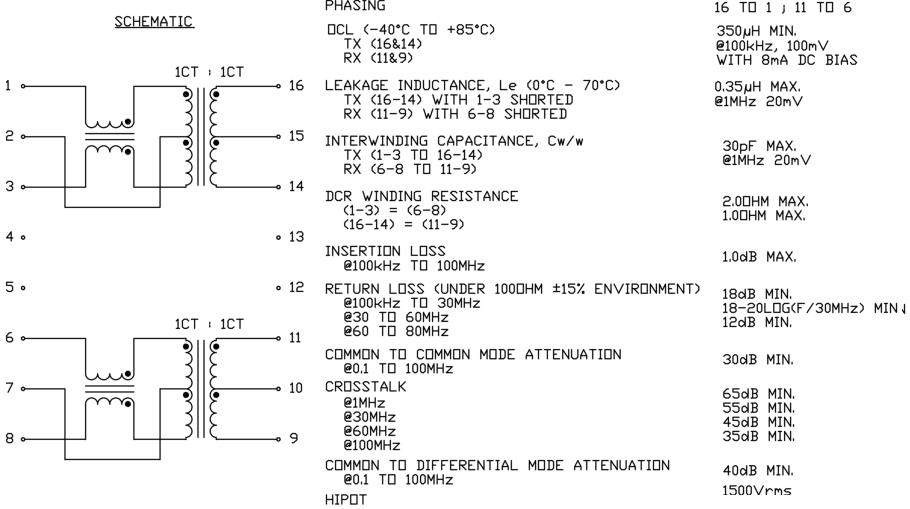

TG110-050N5RL / SMST-1666 10/100BT Transformer Module Overview:

Features:

Electrical Specification (25°C)	Value
1. Turns Ratio (50KHz, 0.5V)	Chip side: Line side = 1CT : 1CT ± 2%
2. Inductance (Ls) (100KHz, 0.1V, 12mA DC Bias)	Chip side: 350μH Min
3. Insertion Loss (1-100MHz)	-1.4dB Max
4. Return Loss
- 1-30MHz	-16dB Min
- 40MHz	-14.4dB Min
- 50MHz	-13.1dB Min
- 60-80MHz	-12dB Min
- 100MHz	-10dB Min
5. Differential to Common Mode Rejection
- 30MHz	-45dB Min
- 60MHz	-40dB Min
- 100MHz	-35dB Min
6. Crosstalk
- 30MHz	-40dB Min
- 60MHz	-35dB Min
- 100MHz	-30dB Min
7. Hi-Pot	1500Vrms Min

TG110-050N5RL SMD Single Port 10/100BASE-TX Transformer LP1198NL / SMST-1666

LINK-PP Magnetics Cross Part Number Transformer Modules
H1102NLT	749010012A	GST5009-E LF	TS6121C
H4P140NX LF	HG5PNX LF	GST5009H LF	TS6121CX
H82409S	LMJTAB881243M-L	SMST-1666	HX1260NL
HG2PM109N LF	BCM-5855CI LF	LP82440ANL	TS8121A
H16105DF	4S1068 HF	G4P209 LF	TS8121C
40SS1041A HF	4S1070 HF	6605814	TS8121CX
ETH1-460L	4S1142 HF	GOP109 LF	S5833H LF
40SS1041RX HF	749020023A	Pulse H1102NL	HX1188FNL
HX1260NL	S1188 HF	GP5409 LF	12ST0022P LF
40SS1140AX1 HF	S6800 LF	PSF-2447	H1601CG
Pulse H5007NL	S1188M HF	7490240142	HC-027
H5007NLT	HX1188NL	H1102FNLT	10G2SA02
TS6121C	S5612 LF	G4P106 LF	24SH10410 HF
