Bothhand H4P041NX LF Quad Port Module 10/100Base-TX Lan Magnetic HN4264VG

Name: Bothhand H4P041NX LF Quad Port Module 10100BaseTX Lan Magnetic HN4264VG
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : H4P041NX LF

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

PN : H4P041NX LF

Transformer Type : Isolation and Data Interface

Turns Ratio : 1CT : 1CT

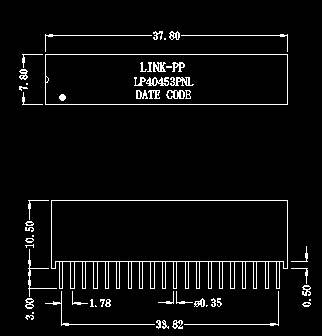

Size / Dimension : 37.8mm L x7.8mm W

Hipot : 1500V

Mass Production : LP40453PNL

Item : HN4264VG

Port : 4

Contact Now

Bothhand H4P041NX LF Quad Port Module 10/100Base-TX Lan Magnetic HN4264VG

Bothhand H4P041NX LF

Cross LP40453PNL

HN4264VG

Datasheet/Price/Specification/3D

Feature

H4P041NX LF Magnetic designs to support every PHY. HN4264VG
Complies with IEEE 802.3 standards including 350 uH min OCL with 8mA bias.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.

Electrical Specifications @ 25°C

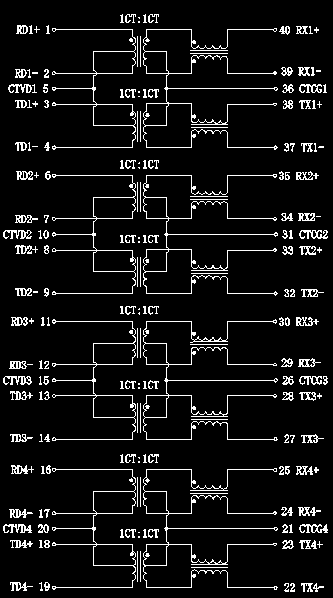

1.Turns Ratio:
@TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.Inductance OCL:
@350uH Min 100KHz 0.1V 8mA DC
3.Insertion Loss: @1-100MHz:-1.2dB Max
4.Return Loss:
@30MHz:-15dB Min, 50MHz:-13dB Min
80MHz:-11dB Min.
5.Cross Talk:
@0.3-30MHz:-40dB Min, 30-60MHz:-35dB Min
60-100MHz:-30dB Min.
6.Common Mode Rejection:
@1-30MHz:-30dB Min, 30-60MHz:-25dB Min
60-125MHz:-20dB Min
7.Isolation HI-POT:
@1500Vrms (Input to Output)
8.Operating Temperature: 0～70℃
9.Storage Temperature Range: -25℃～+125℃

Bothhand H4P041NX LF Quad Port Module 10/100Base-TX Lan Magnetic To All PHY
H4P041NX LF	C855-2B4R-54	H4P041NX LF	0879-2C6R-54
HX1225FNL	H4P041NX LF	H4P041NX LF	H4P041NX LF
0826-1X4T-43-F	0810-2H6R-28-F	0811-2X4R-28-F	0854-2X8R-GK-F
HX2326NL	20PT1024X LF	H4P041NX LF	0895-2X6R-GK
13F-2010CNL	H4P041NX LF	S560-6600-GG	HN4264VG
7490101120	H2001DG	H4P041NX LF	S553-6500-44
H2001DG	S553-6500-E2	HN4264VG	H4P041NX LF
S553-1084-11	LP41654ANL	S560-6600-GM	S553-6500-55
HN4264VG	S553-6500-E4	S560-6600-GV	HN4264VG
LP41654ANL	H4P041NX LF	H2001DG	7490101120

NOTES:

1.Meets all IEEE standards including 350uH OCL with 8mA bias
2.Symmetrical TX and RX channels for auto MDI/MDIX capability
3.For RoHS compliant parts add suffix NL
4.RoHS "NL" peak solder rating 235℃.
