TGS110-MT1NCRL Single 10/100Base-T Ethernet Lan Magnetic 12PS6121C LF

Name: TGS110MT1NCRL Single 10100BaseT Ethernet Lan Magnetic 12PS6121C LF
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : TGS110-MT1NCRL / 12PS6121C LF

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

PN : TGS110-MT1NCRL

Transformer Type : Isolation and Data Interface

Turns Ratio : 1CT : 1CT

Size / Dimension : 14mm L x7.8mm W

Hipot : 1500V

Mass Production : LP41205NL

Item : 12PS6121C LF

Port : 1

Contact Now

TGS110-MT1NCRL Single 10/100Base-T Ethernet Lan Magnetic 12PS6121C LF

Halo TGS110-MT1NCRL

Cross LP41205NL

12PS6121C LF

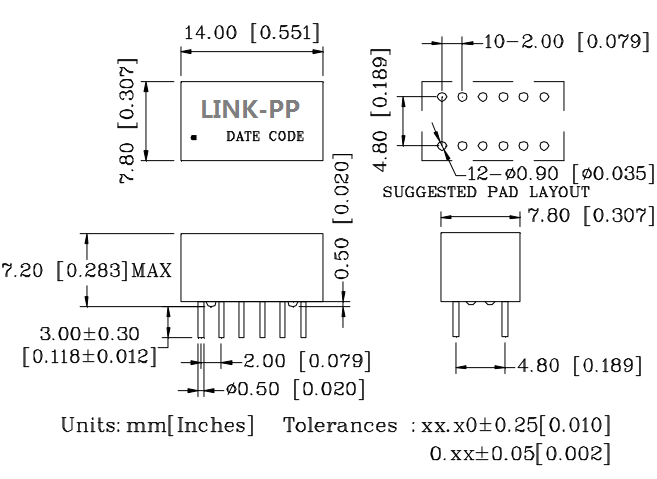

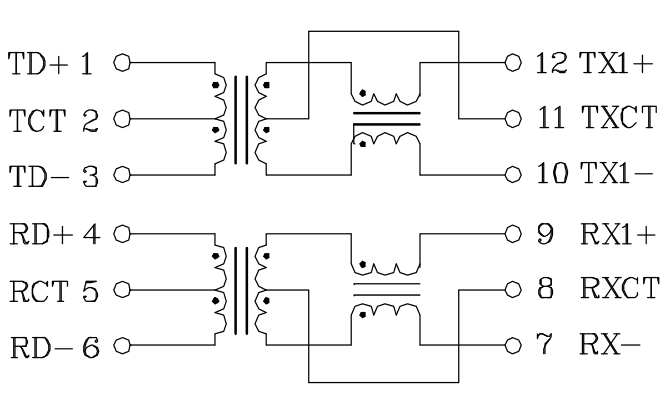

Datasheet/Price/Specification/3D

Feature

TGS110-MT1NCRL Magnetic designs to support every PHY. 12PS6121C LF
Complies with IEEE 802.3 standards including 350 uH min OCL with 8mA bias.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.

Electrical Specifications @ 25°C

1.Turns Ratio(PRI:SEC ±3%):
P1-3:P12-10 1CT:1CT
P4-6:P9-7 1CT:1CT
2.Inductance OCL(100KHz 0.1Vrms 8mA):
P1-3,P4-6 350uH Min
3.Leakage Inductance:
P1-3,P4-6 0.8uH Max
4.D.C.R:
P1-3,P4-6 0.9Ω Max
5.Crlsstalk:
1-100MHz -40dB Typ
6.CMR:
1-100MHz -40dB Typ
7.Isolation HI-POT: 2500VAC/minute
8.Operating Temperature: 0℃～70℃.
9.Storage Temperature Range: -40℃～+85℃

TGS110-MT1NCRL Single 10/100Base-T Ethernet Lan Magnetic 12PS6121C LF
H4P041NX LF	C855-2B4R-54	H4P041NX LF	0879-2C6R-54
HX1225FNL	H4P041NX LF	H4P041NX LF	H4P041NX LF
0826-1X4T-43-F	0810-2H6R-28-F	0811-2X4R-28-F	0854-2X8R-GK-F
HX2326NL	20PT1024X LF	H4P041NX LF	0895-2X6R-GK
13F-2010CNL	H4P041NX LF	S560-6600-GG	12PS6121C LF
7490101120	TGS110-MT1NCRL	H4P041NX LF	S553-6500-44
H2001DG	S553-6500-E2	HN4264VG	H4P041NX LF
S553-1084-11	LP41654ANL	S560-6600-GM	S553-6500-55
TGS110-MT1NCRL	S553-6500-E4	S560-6600-GV	HN4264VG
LP41654ANL	H4P041NX LF	12PS6121C LF	7490101120

NOTES:

1.Meets all IEEE standards including 350uH OCL with 8mA bias
2.Symmetrical TX and RX channels for auto MDI/MDIX capability
3.For RoHS compliant parts add suffix NL
4.RoHS "NL" peak solder rating 235℃.
