JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI

Brand Name : LINK-PP

Model Number : JXK0-0136NL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

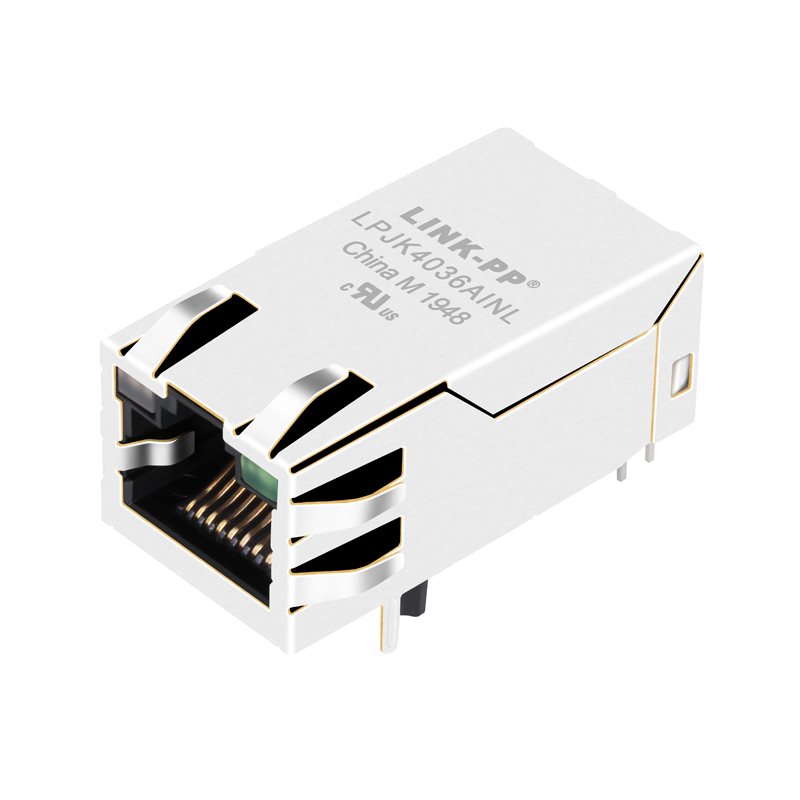

part Number : LPJK4036AINL

Design No : JXK0-0136NL

Original Munafactuer : LINK-PP

Application : 10/100/1000Base-T

Termination : Solder

Type : DIP / Side Entry

Contact Now

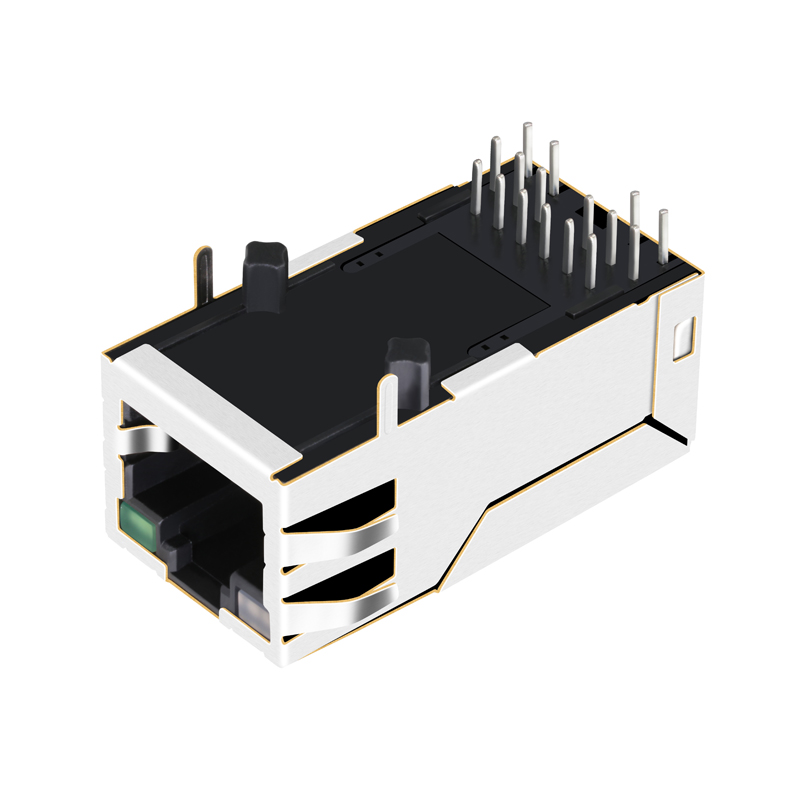

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI

Pulse JXK0-0136NL Gigabit Ethernet Connector 10/100/1000 Base-T JXK0-0136NL Cross /Price/Datesheet/PDF/3D

• Compliant with IEEE802.3ab standard
• 350uH minimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• High reliability – 750 mating/unmating cycles

• Designed for most leading PHY IC manufacturers such as Broadcom,Marvell, Microsemi.
• Supports 10/100/1000 Base-Tapplications
• Provides signal conditioning, EMI suppression and signal isolation.

ELECTRICAL SPECFICATIONS: @25℃


1.OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
2.Turns Ratio(±2%):
1CT∶1
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.Hipot: 1500Vrms MIN
8.Operating Temperature: -40℃～+85℃.

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI
JXK0-0136NL JXR1-0011NLT JXR0-0015NLT
ARJ11A-MASL-QU2 ARJC02-111009D ARJ11C-MCSAT- A-B-xMU2
ARJ11A-MASM-RT2 ARJC07-111071A JXR0-0005NLT
ARJ11A-MDSN-MU2 ARJC02-111006K ARJ11C-MASAB- B-A-xMU2
ARJE-0026 ARJE-0026 ARJ11C-MASAD- A-A-xMU2
ARJ11B-MASAA-MU2 ARJC02-111006K JXR0-0005NLT
ARJ11B-MASAI-MU2 ARJC01-111002AR ARJ11D-MASB-B-A-XMU2
JXKM-0004NL ARJC01-111002T JXK0-0136NL
ARJ11B-MASAM-MU2 ARJC02-111006K ARJ11D-MDSD-A-B-XLT2
JXK0-0136NL ARJE-0026 ARJ11D-MCSD-LT2
ARJ11B-MASBF-LU2 ARJC01-111002AR ARJ11D-MDSE-A-B-XMU2
ARJC01-111002L ARJC01-111002L JXR0-0005NLT
JXKM-0013NL ARJP11A-MASA-B-A-EMU2 ARJ11D-MDSG-B-A-XMU2
ARJ11B-MBSCB-A-B-ELT2 ARJP11A-MASA-B-A-FMU2 ARJ11D-MASG-B-A-XMU2
JXKM-0013NL ARJP11A-MBSB-A-B-EMU2 ARJ11D-MASG-A-A-XMU2
ARJ11B-MESBQ-A-B-EMU2 JXKM-0004NL ARJC01-111002AR
ARJ11B-MASBQ-MU2 ARJP11B-MASA-B-A-EMU2 ARJ11D-MDSH-A-B-XLU2
JXK0-0136NL ARJP11B-MBSB-A-B-EMU2 ARJ11D-MASH-B-A-XLU2
ARJ11B-MFSBQ-A-A-EMU2 ARJP11C-MASA-A-B-EMU2 ARJ11D-MBSJ-A-DA-HLT2
ARJC01-111002T ARJP11C-MASB-AB-A-FMU2 ARJ11D-MBSK-A-DA-HMU2
ARJ11B-MASBR-QU2 JXK0-0136NL ARJ11D-MBSL-A-DA-HLU2

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI

JXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMIJXK0-0136NL Magnetic RJ45 10/100/1000 Base-T Thru-Hole Angle Right Shielded EMI
