LPJ4011ABNL Cross MIC24013-5104T-LF3 10/100Mbps Rj45 With LED 74990112121

Name: LPJ4011ABNL Cross MIC240135104TLF3 10100Mbps Rj45 With LED 74990112121
Brand: LINK-PP
Price: 0.06 USD

LPJ4011ABNL Cross MIC24013-5104T-LF3 10/100Mbps Rj45 With LED 74990112121 Manufactures

Brand Name : LINK-PP

Model Number : MIC24013-5104T-LF3

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 1pcs

Price : $0.06-$1.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part No : MIC24013-5104T-LF3 / 74990112121

Speed : 10/100 Base-T

Family : RJ45 Connector with 10/100 Base-T Integrated Magnetics

Orientation : 90° Angle (Right)

LED Color : Green - Yellow

Mounting : Through Hole

Contact Now

RJ45 Connector with 10/100 Base-T Integrated Magnetics LPJ4011ABNL Cross MIC24013-5104T-LF3 74990112121

LPJ4011ABNL Cross MIC24013-5104T-LF3 = 74990112121

Part Number

MIC24013-5104T-LF3

Price Break	Unit Price	Extended Price
1-5	Free	Free
10-50	2.0	-
100-500	A-l	-
1,000-2,500	B-K	-
5,000	C-L	-
10,000	D-H	-
50,000	Supportive	Supportive
100,000	Supportive	Supportive
500,000	Supportive	Supportive

Part Number

74990112121

Description

10/100Mbps RJ45 With Transformer

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

LINK-PP MODULE

LPJ4011ABNL Made In China

Ship

3 Days ship immediately

ELECTRICAL SPECIFICATIONS: @25°C
1. Turn Ratio (±2%):
TX=1CT : 1CT
RX=1CT : 1CT
2. Inductance OCL: 350uH MIN @100KHz 0.1V 8mA DC Bias
3. Insertion Loss: -1.0dB MAX @ 1.0-100MHz
4. Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5. Cross-talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN 100MHz
6. Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHZ
7. Hipot: 1500Vrms
8. Operating Temperature Range: -40°C TO +85°C.

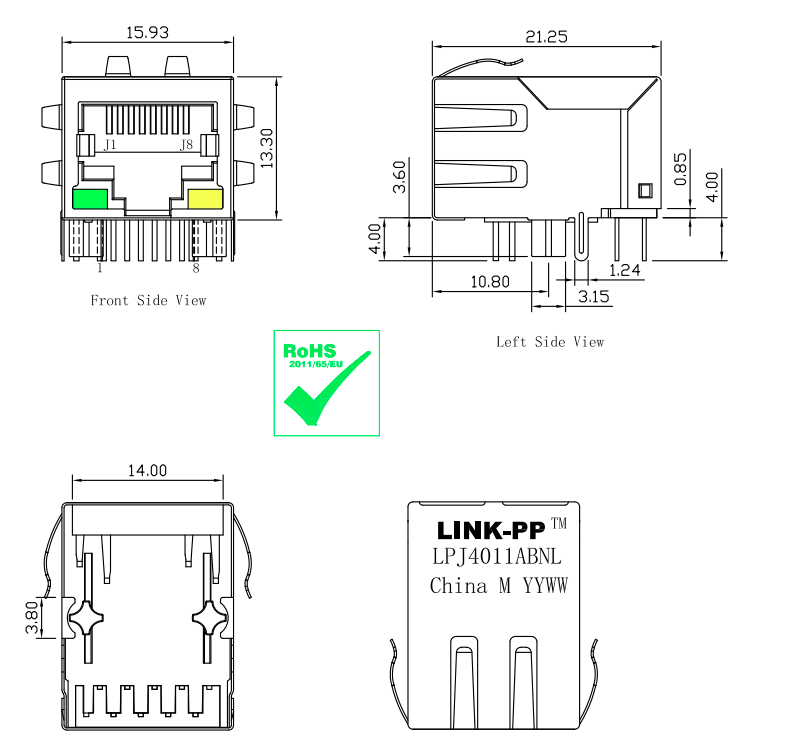

RJ45 Connector Datasheet

LPJ4011ABNL Cross MIC24013-5104T-LF3 10/100Mbps Rj45 With LED 74990112121

LINK-PP Made In China Factory Mass Production List:

MIC24013-5104T-LF3	74990112121	13F-64YGD2PLNW2NL	74990112121
99751813-01	74990112121	XFATM2GA-CLGY1-2MS	XFATM6CB-CLYG1-4MS
JX0011D21BNL	J00-0045NL	MTJ-88TX1-FSZ-PG-D1LH-M7	MIC24013-5104T-LF3
RJLD260TC1	SI-60118-F	HFJ11-E2450E-L12RL	74990112121
RJLD-260TC1	J1B1211CFD	XFATM2E-Clxu1-4MS	7499211121A
213A-11XAX-R	RJC-248TC1	MIC24013-5104T-LF3	MIC66011-5171T-LF3
JXR0-0015NL	RJLBC-060TC1	J00-0045NL	XFO656P-CLxu1-4MS
13F-64HND2NL	HY911105AE	5-1840450-7	24F-2011EGYD2SNWXNL
HFJ11-E2450E-RL	2-1840450-8	HFJ11-E2450E-L11RL	5-6605443-1
SJTAB-40LB02-L	RJLB-001TC1	13F-64GYDPNS2NL	XFAMT6SA-CLGY1-4MS
3070-110204	J00-0045NL	74990112121	24G-66JGYDPLZ2NL
74990112121	74990112121	MIC24013-5104T-LF3	74990112121
