Ultra Low Profile Rj45 Connector L8AL-1X1T-32A Gigabit Magjack Tab-up Shield

Name: Ultra Low Profile Rj45 Connector L8AL1X1T32A Gigabit Magjack Tabup Shield
Brand: LINK-PP
Price: 0.08 USD

Brand Name : LINK-PP

Model Number : L8AL-1X1T-32A

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.08-$1.79

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 2800K-PCS/Month

Delivery Time : Stock

Packaging Details : 60pcs/tray,or Reel Package

PN : L8AL-1X1T-32A

Made In China : SM-LPJK7436CNL

LEDs : WIthout or With

Family : 10/100/1000BT Magnetics

PCB Mounting Orientation : Side Entry Thru-Hole

Hipot : 1500V Input to Output

Contact Now

Ultra Low Profile Rj45 Connector L8AL-1X1T-32A Gigabit Magjack Tab-up Shield

L8AL-1X1T-32A

Trader Part Number

L8AL-1X1T-32A Belfuse

Price Break	Unit Price	Extended Price
1-5	Free	-
10-50	4	-
100-500	3.5	-
1,000-2,500	dynamic	dynamic
5,000	dynamic	dynamic
10,000	Negotiable	Negotiable
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made In China

SM-LPJK7436CNL

Manufacturer

LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS / Or 4 weeks

Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz 100mV 8mA DC bias current.
2.Turns Ratio(±3%):
TX=1CT:1CT RX=1CT:1CT
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20
30MHz:-16
60-90MHz:-12
5.Crosstalk(dB MIN):
1-10MHz:-40
30-60MHz:-35
60-100MHz:-30
6.CMR(dB MIN):
1-50MHz:-26
50-130MHz:-20
7.DC Current/Voltage Rating - PSE Pins:
350mA,@57V(continuous)
8.Hipot: 1500Vrms MIN
9.Operating Temperature: -40℃～+85℃.

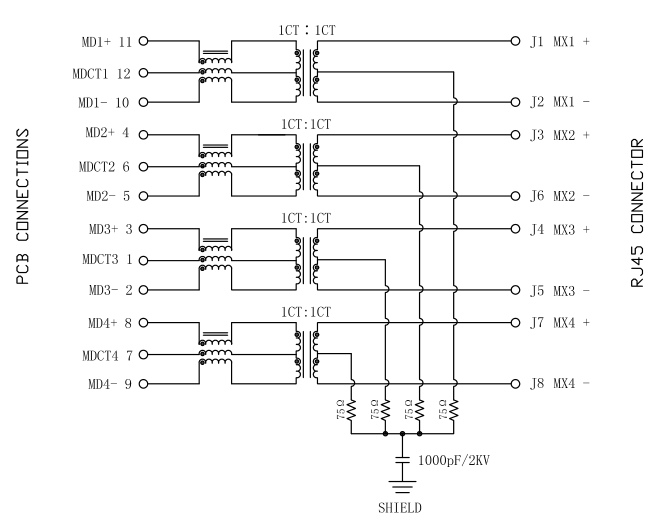

10.Partial Specifications:

Ultra Low Profile Rj45 Connector L8AL-1X1T-32A Gigabit Magjack Tab-up Shield

Product Tags:

ultra low profile jack

low profile rj45 connector
