ERNI 203343 Vertical RJ45 Jack Connectors Top Entry Gigabit Magnetics

Name: ERNI 203343 Vertical RJ45 Jack Connectors Top Entry Gigabit Magnetics
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : ERNI 203343

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3200000/Month

Delivery Time : Stock

Packaging Details : Tray/Carton

Trader : ERNI 203343

Made In China : SM-LPJD0713BDNL

Port : Single

Applications : GIE 100/1000Base-TX

Family : RJ45 Vertical

Mounting : Top Entry

Contact Now

ERNI 203343 Vertical RJ45 Jack Connectors Top Entry Gigabit Magnetics

ERNI 203343

Trader Part Number

ERNI 203343

Price Break	Unit Price	Extended Price
1-5	Free	-
10-50	3.5	-
100-500	3.0	-
1,000-2,500	dynamic	dynamic
5,000	dynamic	dynamic
10,000	Negotiable	Negotiable
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made In China

SM-LPJD0713BDNL

Manufacturer

LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS / Or 4 weeks

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.1dB MAX @ 0.1～100MHz
4.Return Loss:
-18dB MIN @ 0.5～30MHz
-15.5dB MIN @ 40MHz
-13.6dB MIN @ 50MHz
-12dB MIN @ 60～80MHz
5.Cross talk:
-40dB TYP @ 0.1～100MHz
6.Common Mode Rejection:
-50dB TYP @ 0.1～30MHz
-40dB TYP @ 30～60MHz
-35dB TYP @ 60～100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃～70℃.

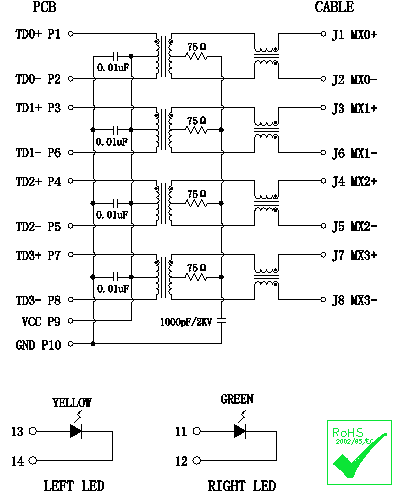

9.203343 Partial Specifications

ERNI 203343 Vertical RJ45 Jack Connectors Top Entry Gigabit Magnetics
