HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

Name: HFJV11G16L12RL LPJD0773BDNL Vertical rj45 Jack HFJV11G41L12RL Gigabyte
Brand: LINK-PP
Price: 0.09 USD

HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte Manufactures

Brand Name : LINK-PP

Model Number : HFJV1-1G16-L12RL

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton

Specification1 : HFJV1-1G16-L12RL

Specification2 : HFJV1-1G41-L12RL

Part No : LPJD0773BDNL

Mounting : DIP / Top Entry

Application : 10/100/1000Mbps

Termination : Solder

LEDs : Optional

Samples : Available

Contact Now

HFJV1-1G16-L12RL , LPJD0773BDNLVertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

FastJack ™ 1x1 Vertical Gigabit RJ45

1.Gigabit (10/100/1000) Ethernet RJ45
2.IEEE802.3ab Compliant
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot

7..Designing Model: HFJV1-1G16-L12RL

8..Mass Production Model: LPJD0773BDNL

MAG., REVERSE LATCH , LED optional, EMI-finger Optional.

HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
3.Turns Ratio: 1∶1 ±3%
4.Insertion Loss:
1-100MHz:-1.1dB Max
5.Return Loss(dB Min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
6.Crosstalk:
1-100MHz:-35dB Typ
7.Common Mode Rejection(dB Typ):
0.1-30MHz:-38 30-60MHz:-35
60-100MHz:-30
8.Isolation Voltage: 1500Vrms
9.Operating Temperature:0～70℃

Product Tags:

stacked rj45 connectors

multi port connector

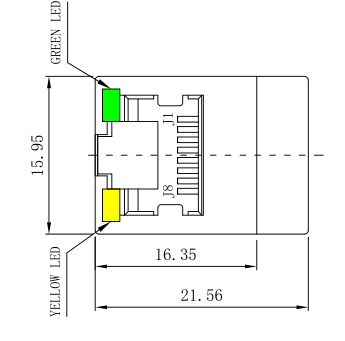

HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte Images
