10082590-XXXLF Stacked RJ45 Connectors 2x1 Through Hole Mounting

10082590-XXXLF 10/100BaseT 2X1 Rj45 Connectors

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN manufacturers.
♦ Primary center taps are available for additional EMI reduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

Description

1. Product Type Features:

1) Product Type = Stacked RJ45 Connectors
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 2 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger = With
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Multi
2) EMI Fingers - Sides = With
3) Latch Orientation = Standard - Latch Up and Down

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

10. Hipot: 1500Vrms MIN

Applications

• Ethernet switches and routers
• IP surveillance cameras
• Industrial control systems
• Smart home devices
• Point-of-sale (POS) systems
• IoT gateways and embedded modules

Other Replaceable List:

Stacked RJ45 Connectors

RJ45 Multi Port Jack

2x1 RJ45 Connectors

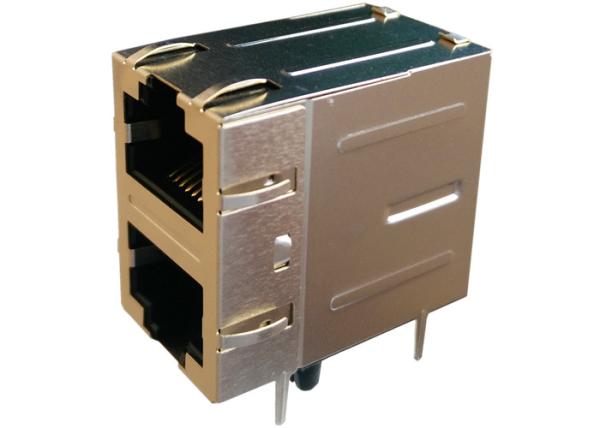

10082590-XXXLF Stacked RJ45 Connectors 2x1 Through Hole Mounting Images
