1-1840012-2 RJ45 Connector Over Single USB URG41 Gigabit Circuit

LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1-1840012-2 RJ45 Connector Over Single USB URG41 Gigabit Circuit

  • 1
  • 2

Brand Name : LINK-PP

Model Number : 1-1840012-2 / 1840012-1

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Ships within 3 days

Packaging Details : Tray

Part Number : 1-1840012-2

Number of Ports : 1X1 and 1 USB A

Connector Type : RJ45 USB Connector Combo

Applications : 10/100/1000 Base-T

Mounting Type : Through Hole

Orientation : 90~ Angle (Right)

Termination : Solder

Shielding : Shielded, EMI Finger

Contact Now

Description

The 1-1840012-2 is an integrated connector module (ICM) that combines an RJ45 Ethernet port with a USB Type-A port in a compact, shielded housing. It is designed for 1000BASE-T (Gigabit Ethernet) applications and includes integrated magnetics and LED indicators for streamlined PCB integration.

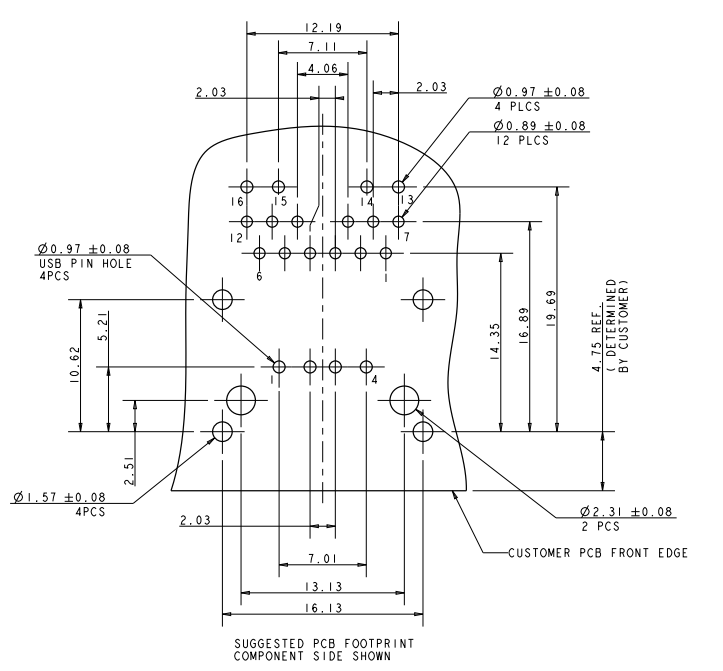

1-1840012-2 RJ45 Magjacks Drawing

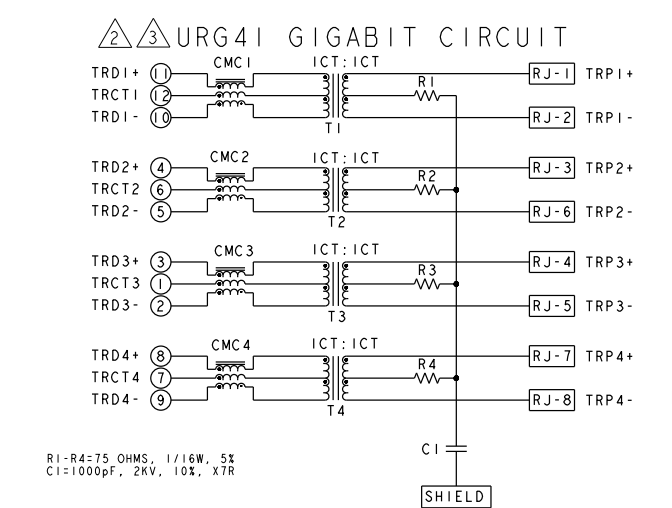

1-1840012-2 RJ45 Connector Over Single USB URG41 Gigabit Circuit

1-1840012-2 RJ45 Connector Over Single USB URG41 Gigabit Circuit

Other Replaceable Part Number List

1-1840012-2 Gigabit RJ45 USB Connector 1840012-1 USB para Rj45 Stacked Rj45 USB
1-1840012-2 0833-2X6R-55 0826-1G1T-23 1-6605706-1
0810-2H4R-28 1840012-2 1840012-1 0826-1G4T-32
0811-1X1T-06 1-1840012-2 1-6610132-1 2-1761889-1
0826-1G4T-32 2-1761889-2 2-1761889-1 6-1761889-8
1761889-1 2-1761889-1 1840012-2 2-1761889-3
0813-1X1T-43 2-1761889-3 2-1761889-2 2-1761889-1
2-1761889-3 2-1761889-1 1-1840012-2 1-1840012-2
0826-1D4T-M1-F 2-1761889-3 1840012-1 6-1761889-8
0816-1X1T-GJ-F 1-1840012-2 0826-1X4T-23 0826-1C4T-23
1761889-8 1761889-2 2-1761889-2 1761889-2
1840012-1 1761889-1 1840012-2 1840012-2
1840012-2 2-1761889-1 0826-1C4T-23 1761889-2
2-1761889-3 2-1761889-2 1840012-1 0826-1X4T-23
