85727-1002 Stacked RJ45 85727-1003 2X4 Gigabit Magnetic Jack 85727-1001 Molex

  • 1
  • 2

Brand Name : LINK-PP

Model Number : 85727-1002

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Part Number : 85727-1002 / 85727-1003 / 85727-1001

Type : Magnetic Jack

Number of Positions / Contacts per Port : 8P8C

Configuration : 2X4

Performance Category : Cat 5, Cat 5e

Operating Temperature : 0°C ~ 70°C

Contact Now

85727-1002 85727-1001 85727-1003

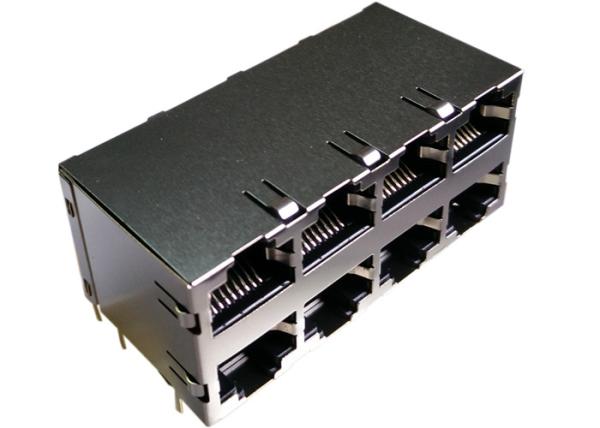

Stacked RJ45 magnetic jack 2x4 RJ45 with Magnetics Stacked Rj45 Connectors

Features of 2X4 Gigabit Magnetic Jack

  • Fully shielded RJ-45 connector with multiple ports
  • Integrated Ethernet magnetics with Bob Smith termination with an isolation capacitor
  • Compatible with a variety of Gigabit Ethernet transceiver ICs (PHYs)
  • Compliant with Gigabit (1000 Base-T) IEEE STD 802.3-2012
  • The connector is intended to be mated with plugs according to IEC 60603-7
  • Dielectric isolation of 2250VDC between PHY pins and cable side
  • Operating temperature commercial version: 0°C to 70°C, external ambient temperature

Specifications:

Parameter Description
Part Number 85727-1001 / 85727-1002 / 85727-1003
Type Magnetic Jack
Gender Jack (Female)
USOC Codes RJ45
Configuration 2x4
Positions / Contacts per Port 8P8C
Shielding Shielded, EMI Fingers
Performance Category Cat 5, Cat 5e
Mounting Style Through Hole
Mounting Angle Right Angle
Termination Style Solder
Current Rating 1.5 A
Voltage Rating 125 VAC
Minimum Operating Temperature 0 °C
Maximum Operating Temperature +70 °C
Color Black
LED L / R Color Orange / Green
Tab Direction Tab Up and Tab Down
Packaging Tray
Application 10/100/1000 Base-T
Contact Material Tin
Contact Plating Gold
Number of Ports 8 Port
Number of Positions 64 Position
Number of Rows 1 Row
Pitch 1.02 mm
RoHS Yes

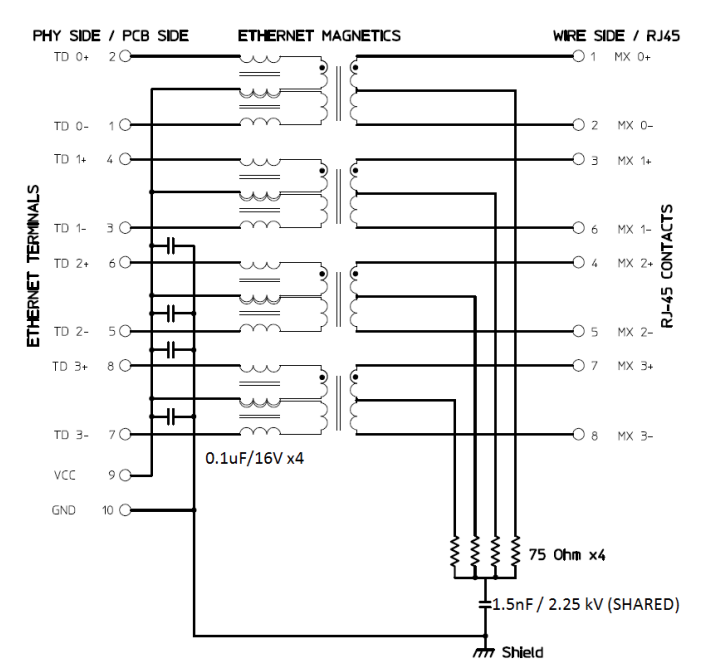

Magnetic Wiring Schematic Diagram

85727-1002 Stacked RJ45 85727-1003 2X4 Gigabit Magnetic Jack 85727-1001 Molex
