LPJG16314A4NL ▶ Intel MinnowBoard MAX 10/100/1000Base-T Ethernet Rj45 Jack

Name: LPJG16314A4NL Intel MinnowBoard MAX 101001000BaseT Ethernet Rj45 Jack
Brand: LINK-PP
Price: 1 USD

LPJG16314A4NL ▶ Intel MinnowBoard MAX 10/100/1000Base-T Ethernet Rj45 Jack Manufactures

Brand Name : LINK-PP

Model Number : LPJG16314A4NL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : LPJG16314A4NL

Speed : 10/100/1000Base-T

Application : Intel MinnowBoard MAX

Pin Type : THT Solder

RoHS Compliant : YES-RoHS

Samples : Free Available

Contact Now

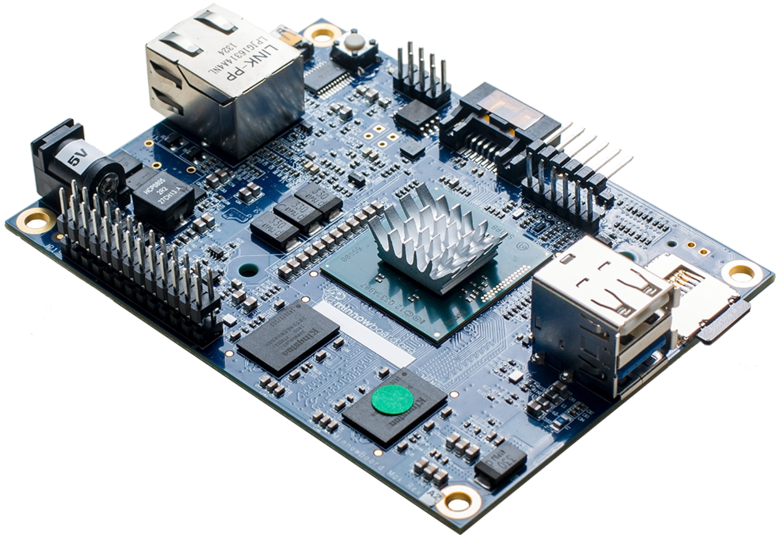

Intel MinnowBoard MAX Equipped with LINK-PP LPJG16314A4NL RJ45 Connector

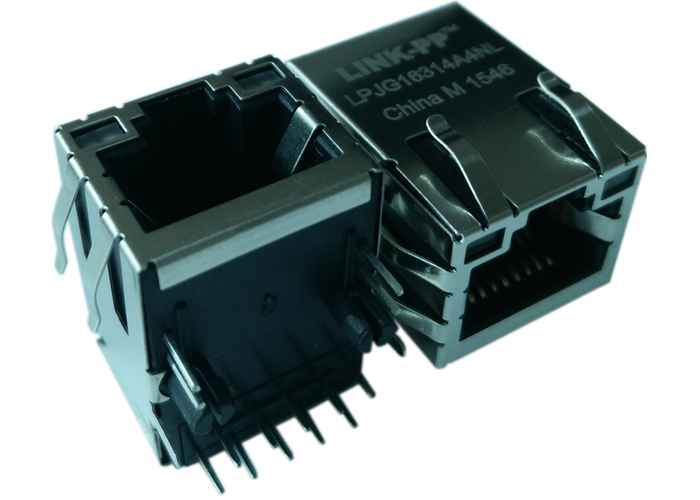

General Information of LPJG16314A4NL RJ45 With Magnetics:

Part Number	Products	Manufacturer	Description
LPJG16314A4NL	RJ45 Magnetic Jack	LINK-PP	RJ45 Connector with 1000 Base-T Integrated Magnetics
Speed	Operating Temperature	Applications	Mounting Type
1000 Base-T	0℃~70℃	Intel MinnowBoard MAX	Thru-Hole

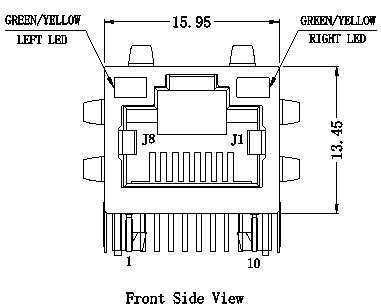

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	G&Y/G&Y	Shielded, EMI Finger
RJ45 Connector Datasheet: LPJG16314A4NL.pdf

LPJG16314A4NL RJ45 Magnetic Jack Empower MinnowBoard MAX:

MinnowBoard MAX is the second generation MinnowBoard (released in July 2014), updating and replacing the original MinnowBoard. The MinnowBoard MAX board has an upgraded 64-bit Intel®Atom™ E3800 (Bay Trail-I) processor with better graphics and revised I/O, shrinks the footprint by more than half, supports additional operating systems (Linux*, Android*, and Windows*) and significantly improves on the original board on price, performance, and energy consumption. The MinnowBoard MAX uses a Realtek RTL8111GS-CG PCIe-based chipset to provide a 10/100/1000 Ethernet connection.The LINK-PP's LPJG16314A4NL ethernet magjack seamlessly integrates with the Intel MinnowBoard MAX, which provides a high-speed, stable Ethernet connection. It is a 1X1 Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics. Equipped with Green Yellow/Green Yellow LED indicators and Shield EMI Tabs.

LPJG16314A4NL ▶ Intel MinnowBoard MAX 10/100/1000Base-T Ethernet Rj45 Jack

LINK-PP Is The preferred Supplier of Intel:

LINK-PP delivers high-value products, solutions, and services to assist you in constructing and maintaining computer networks, the Internet, and other communication infrastructure. We lead the industry with advanced R&D, state-of-the-art production facilities, precision testing, strategic inventory management, decades of expertise, global impact, and a commitment to sustainability. LINK-PP RJ45 Connectors are widely praised by global leading companies in various fields.
