PulseJack J0011D21BNL Connector 8P8C Rj45 10/100Base-T W/LEDs

Name: PulseJack J0011D21BNL Connector 8P8C Rj45 10100BaseT WLEDs
Brand: LINK-PP
Price: 1 USD

PulseJack J0011D21BNL Connector 8P8C Rj45 10/100Base-T W/LEDs Manufactures

Brand Name : LINK-PP

Model Number : J0011D21BNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

part Number : J0011D21BNL

Made In China : SM-LPJ0011ABNL

Ethernet : 10/100Base-TX

Project Application : Wireless Port

LEDs : Green/Yellow

Family : Magnetics Rj45 Female Jack

Contact Now

PulseJack J0011D21BNL Connector 8P8C Rj45 10/100Base-T W/LEDs

ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%%P2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL: 350uH MIN
@100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.Operating Temperature Range: 0℃ TO 70℃

PulseJack J0011D21BNL Connector 8P8C Rj45 10/100Base-T W/LEDs

Product Tags:

stacked rj45 connectors

rj45 magnetic jack

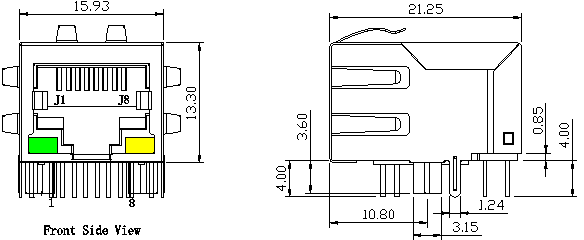

PulseJack J0011D21BNL Connector 8P8C Rj45 10/100Base-T W/LEDs Images
