Brand Name : LINK-PP
Model Number : XRJM-S-01-8-8-1
Certification : UL,ROHS,Reach,ISO
Place of Origin : Guangdong,China
MOQ : 50/500/1000/25K
Price : $0.09-$1.85
Payment Terms : TT,NET30/60/90 Days
Supply Ability : 250000-320000/Month
Delivery Time : Stock
Packaging Details : 50pcs/tray,1200pcs/carton
Specifications : XRJM-S-01-8-8-1
P.N : LPJE101AGNL
Category : Cat5/5e
Project Application : Networking Solutions
LEDs : Green/Yellow
Samples : Available
Specification | P.N | Manufacturer | Description |
XRJM-S-01-8-8-1 | SM-LPJE101AGNL | LINK-PP | XRJM-S-01-8-8-1 Rj45 RJ45 Single Port , 8P8C Shielded Thru-Hole LPJE101AGNL |
Series | Connector Type | Applications | Mounting Type |
Connectors, Interconnects | LINK-PP Rj45 | PCB | Thru-Hole |
| |||
Orientation | Termination | LED Color | Shielding |
90° Angle (Right) | Solder | Green/Yellow | Shielded, EMI Finger |
XRJM-S-01-8-8-1 PCB JACK Specification 1.Insulation Resistance:500MΩMIN @ 500 VDC 2.Withstanding Voltage:AC1000V 50Hz or 60Hz 1min. 3.Durability:600 Mating Circles MIN. 4.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch 5.(1)Storage: -40℃ to +85℃ (2)Opertion: -40℃ to +85℃ (3)Wave solder temperture:230℃ to 250℃,5~10 Sec. | |||
|
![]() |

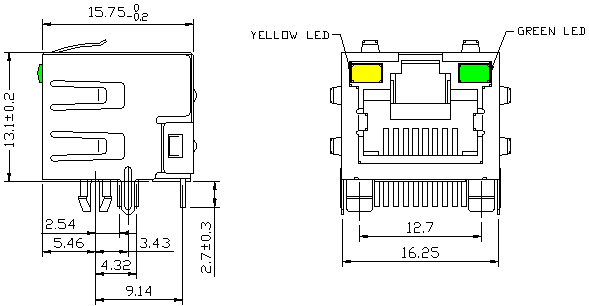

XRJM-S-01-8-8-1 Rj45 RJ45 Single Port , 8P8C Shielded Thru-Hole LPJE101AGNL Images |
