HR901110A , RaZberry Lan Rj45 Jack LPJ0034DNL 8Pin Z-Wave Of Smart Home

Name: HR901110A RaZberry Lan Rj45 Jack LPJ0034DNL 8Pin ZWave Of Smart Home
Brand: LINK-PP
Price: 0.68 USD

HR901110A , RaZberry Lan Rj45 Jack LPJ0034DNL 8Pin Z-Wave Of Smart Home Manufactures

Brand Name : LINK-PP

Model Number : HR901110A

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : 0.68-0.92 USD/PCS

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

part Number : HR901110A

Cross&Datasheet : LPJ0012DNL

Apllication : 10/100 Base-T

Original Munafactuer : LINK-PP

Project Application : NETWORK INTERFACE CARD

File : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

HR901110A , RaZberry Lan Rj45 Jack LPJ0034DNL 8Pin Z-Wave Of Smart Home

Single Port RJ45 PCB Modular Jack with 10/100 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number	LPJ0012DNL
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	NO DIODES
LED Option	WITHOUT LEDS
Latch	TAB DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST

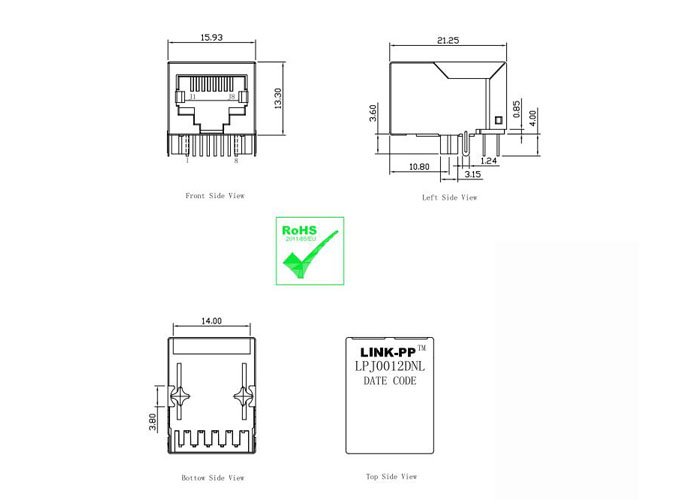

Package Height (Inches)	0.528
Package Height (mm)	13.40
Package Length (Inches)	0.839
Package Length (mm)	21.30
Package Width (Inches)	0.626
Package Width (mm)	15.90
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	10/100 BASE-T
Temperature	- 40℃ TO + 85℃

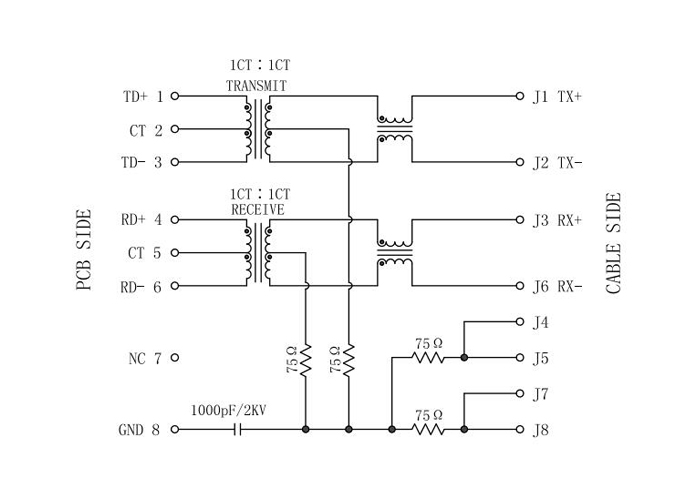

Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Related Part

LPJ0007DNL	RJ-10437C	LPJ0026DNL	RJ-10416C
LPJ0009GDNL	RJ-10437B	LPJ0026G7NL	RJ-10416
LPJ0011AANL	RJ-10437	LPJ0026GANL	LPJ0011HBNL
LPJ0011ABNL	LPJ0017CNL	LPJ0026GDNL	LPJ0011HENL
LPJ0011ACNL	LPJ0017FENL	LPJ0026GENL	LPJ0012A73NL
LPJ0011BBNL	LPJ0017GENL	LPJ0026HDNL	LPJ0012CNL
LPJ0011CNL	LPJ0022BANL	LPJ0034BBNL	LPJ0012G7NL
LPJ0011DNL	LPJ0022BBNL	LPJ0034CNL	LPJ0012GDNL
LPJ0011EBNL	LPJ0022DNL	LPJ0034DNL	LPJ0012GENL
LPJ0011FBNL	LPJ0022FBNL	LPJ0037FBNL	LPJ0012NDNL
LPJ0011G4NL	LPJ0025AANL	LPJ0040DNL	LPJ0013ABNL
LPJ0011GBNL	LPJ0025ABNL	LPJ0044CNL	LPJ0013AHNL
LPJ0011GDNL	LPJ0025AGNL	LPJ0047NNL	LPJ0013BBNL
LPJ0011GENL	LPJ0025CNL	LPJ0049A76NL	LPJ0013BHNL
LPJ0011GFNL	LPJ0025DNL	LPJ0049AENL	LPJ0013CNL
RJ-10403	LPJ0025FBNL	LPJ0049AZNL	LPJ0013DNL
LPJ0025GANL	LPJ0025G4NL	LPJ0049CNL	LPJ0013FBNL
LPJ0025GBNL	RJ-180G53A	LPJ0049GDNL	LPJ0013GENL
LPJ0025GCNL	RJ-180G53	LPJ0050ABNL	LPJ0014A55NL
LPJ0025GENL	RJ-180G52B	LPJ0050BBNL	LPJ0014BBNL
LPJ0025HHNL	RJ-180G52A	LPJ0050CNL	LPJ0014CNL
LPJ0026A73NL	LPJ0026A7NL	LPJ0050DNL	LPJ0014DNL
RJ-180G51B	LPJ0026ABNL	LPJ0055CNL	RJ-104G54
RJ-180G51A	LPJ0026BBNL	LPJ0055FBNL	RJ-101G53Y
RJ-180G51	LPJ0026BCNL	LPJ0064GENL	RJ-104G53M
RJ-180G50A	LPJ0026CNL	LPJ0070CNL	RJ-104G50
RJ-180G50	RJ-180A01	RJ-180A07	RJ-10401M
RJ-180A08	RJ-101F02	RJ-180A06	RJ-10401A
RJ-180A03	RJ-101F01	RJ-180A05	RJ-10401
RJ-180A02	RJ-101B56	RJ-180A03A	RJ-10449Y
RJ-180A01D	RJ-101B50	RJ-10149A	RJ-10449B

LPJ0012DNL RaZberry LAN Rj45 Jack 8Pin Z-Wave Of Smart Home

HR901110A , RaZberry Lan Rj45 Jack LPJ0034DNL 8Pin Z-Wave Of Smart Home

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

Manufactured under strict controls.

ISO 9001:2008

UL Certification

Reach Cetitifaction

RoHS compliance

OEM Of TE(Tyco) For 9 Years

Active Environmental policy

Every module tested (not just batch tested)

Main Customers

Texas Instruments	INTEL	SAMSUNG	FLUKE	EKF	HUAWEI	IBM	CISCO
FLEXTRONICS	JABIL	Foxconn	CANON	Arduino	--	---	---

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
