J00-0065NL RJ45 MagJack LPJ0011ABNL 10/100 Base-TX , AutoMDIX Shielded , EMI Finger

Brand Name : LINK-PP

Model Number : J00-0065NL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 25pcs

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : J00-0065NL （LPJ0011ABNL）

Gender : RJ45 Female Connector

Apllication : 10/100 or 1000Base-T(x)

Termination : Solder

Feature : Lead Free

Operating Temperature : 0°C ~ 70°C

PCB Mount Angle : SIDE ENTRY

Mounting Type : Through Hole

Contact Now

J00-0065NL RJ45 MagJack LPJ0011ABNLShielded with EMI Finger

Overviews:

  • Product Name: RJ45 Connector with 10/100 Base-T Integrated Magnetics
  • Number of Ports: 1x1 Port
  • Mounting Type: Through Hole
  • LED L / R Color: Green / Yellow
  • Number of Positions/Contacts:8P8C
  • Latch: Tab-DOWN
  • Applications: 10/100 Base-TX AutoMDIX

LPJ0011ABNL (J00-0065NL) Datasheet:

LPJ0011ABNL.pdf

Technical Parameters:

Pulse Model J00-0065NL LINK-PP Model LPJ0011ABNL
Product Category Magnetic RJ45 Jack Style Shielded Jack
No of Positions 1 No of Rows 1
Contact Material Phosphor Bronze Contact Plating Gold
Mounting Method Through Hole Orientation 90 Degree Angle (Right)
LED Option Left Green/ Right Yellow Shield EMI Tabs Top and Side
Housing Material PBT+30%G.F Pins Material Brass
Termination Type Solder POE NOE
Total Number of Contacts 8 Number of Positions Loaded 8
Operating Temp Range 0°C to 70°C Moisture Sensitivity Level 1
Turns Ratio RX/TX 1CT:1CT Configuration RX/TX T, C
Durability: 750 Cycles AutomDX YES

Features of RJ45 MagJack:

  1. RJ-45 connector integrated with Filter
  2. Compact design to save PCB board space
  3. High performance for Reducing EMI radiation
  4. ISO9001, SGS, UL, CE, REACH Approved
  5. Embedded mini PCI express Cellular modem from SierraWireless
  6. Certified on all major carrier networks
  7. Reduces the number of components to be placed on the board
  8. Frees up board space and offers signal protection
  9. Noise reduction in the system

Quality Control of RJ45 Jack with Magnetics

  • Raw-material traceability identification
  • Finished product inspection
  • Electrical Testing
  • Mechanical Testing
  • Environmental Testing
  • EMI/EMC Testing
  • Reliability Testing
  • Traceability and Documentation

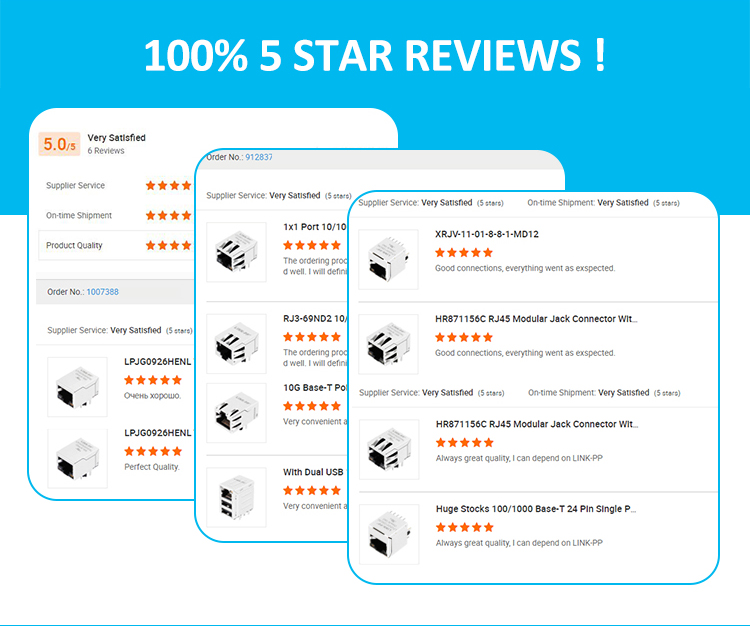

CUSTOMER REVIEWS
