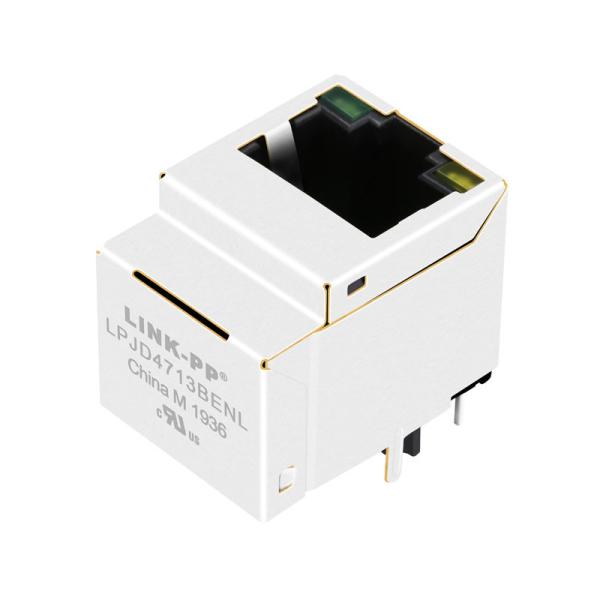

10Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED
- LPJD4713BENL LINK-PP Rj45 Top Entry
- Top Entry Rj-45 Model With 10/100/1000Base-T Magnetic Transformers Inside
- Rj45 With Integrated Magnetic PCB Mounting
| Vertical Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,RoHS |
| LINK-PP Part Number | LPJD4713BENL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.650 |
| Package Height (mm) | 16.51 |
| Package Length (Inches) | 0.849 |
| Package Length (mm) | 21.56 |
| Package Width (Inches) | 0.628 |
| Package Width (mm) | 15.95 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 1000 BASE-T |
| Temperature | - 40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |

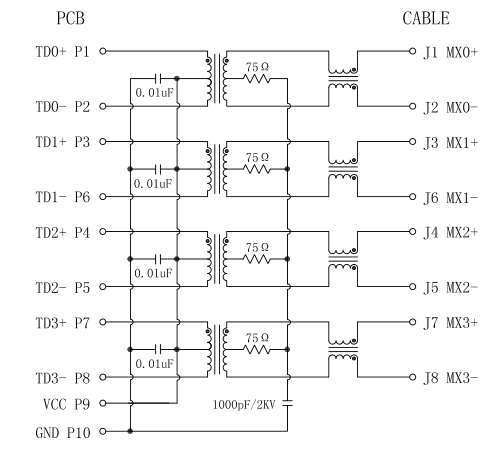

| Electrical Specifications @25℃
1.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
2.Turns Ratio(%%P2%):
TX = 1CT∶1CT RX = 1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.5-30MHz:-18 40MHz:-15.5
50MHz:-13.6 60-80MHz:-12
5.Crosstalk(dB Typ):
0.1-100MHz:-40
6.Common Mode Rejection(dB Typ):
0.1-30MHz:-50 30-60MHz:-40
60-100MHz:-35
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃～85℃ |
 |  |
