LP82440NL Gigabit Ethernet Transformer 1000Base-T Magnetic Module
Electrical Specifications @25℃
1.Turn Ratio(TX/RX):
Pri:Sec=1CT:1CT ±5%
2.Inductance OCL: 350uH Min
@100KHz/0.1V 8mA DC BLAS
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss:
1-30MHz:-18dB Min
40MHz:-14.4dB Min
50MHz:-13.1dB Min
60-80MHz:-12dB Min
5.Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min
6.DCMR:
30MHz:-40dB Min
60MHz:-35dB Min
100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃～70℃
NOTES
1.DESIGNED FOR GIGABIT TRANSCEIVERS
2.PEAK REFLOW TEMPERATURE RATING 260℃
3.MAGNETICS,DESIGNED FOR GIGABIT PHY USED
IN BACKPLANE
4.COMPLIANT WITH IEEE 802.3AB STANDARD

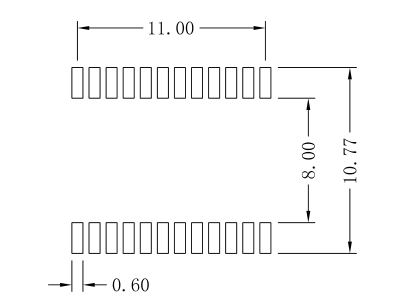

Detailed Information:
| 7490200143 | LP5084ANL Gigabit Ethernet Transformer 1000Base-T Magnetics |
| LINK-PP Part Number | LP82440NL |
| Specification | LP82440NL |
| Speed | 1x10/100/1000Base-T |
| Number of Ports | Single 1x1 |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | 0℃ TO 70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
