Rj45 1x4 Quad Port LPJ46404AENL , JX80-0033NL Magnetics Ethernet Jack 10/100Mbps

Name: Rj45 1x4 Quad Port LPJ46404AENL JX800033NL Magnetics Ethernet Jack 10100Mbps
Brand: LINK-PP
Price: 0.11 USD

Rj45 1x4 Quad Port LPJ46404AENL , JX80-0033NL Magnetics Ethernet Jack 10/100Mbps Manufactures

Brand Name : LINK-PP

Model Number : JX80-0033NL

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

Specification : JX80-0033NL

Part No : LPJ46404AENL

Ethernet : 4x 10/100Mbps

Mounting : Right Angle

Indicators : LEDs

Samples : Available

Contact Now

Rj45 1x4 Quad Port LPJ46404AENL , JX80-0033NL Magnetics Ethernet Jack 10/100Mbps

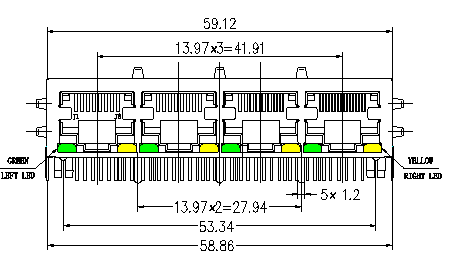

LINK-PP LPJ46404AENL Four Port Filter Rj-45
Cross Equivalent to JX80-0033NL PulseJack
Rj45 4x 10/100Base-T Ethernet Filtered Jack With LED Indicators
Rj45 With Integrated Magnetics Industry standard
Fully IEEE803.2 Compliant over entire temperature range -40°C to +85°C

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: -40℃～+85℃.

Rj45 1x4 Quad Port LPJ46404AENL , JX80-0033NL Magnetics Ethernet Jack 10/100Mbps
