J8064D688ANL 100BASE TX Rj45 Connector 1x8 Port With THT Mounting

Name: J8064D688ANL 100BASE TX Rj45 Connector 1x8 Port With THT Mounting
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Model Number : J8064D688ANL

Certification : ISO9001,SGS,REACH,UL,RoHS

Place of Origin : China

MOQ : 50/500/1000/25Kpcs

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : 10/Tray

Items : J8064D688ANL 8 Port RJ45 Connector

Tab Direction : LATCH-DOWN

LEDs Color : GREEN & YELLOW

Mounting : Right Angle

Number of Ports : 1X8

Speed : 10/100 Base-TX

Automotive : No

PoE : NONE

Shielding : Shielded

EMI / Gasket : With

Contact Now

10/100 Base-TX 8 Port RJ45 Connector Through Hole With LED Indicators

Applications of 1x8 Integrated Connector Modules:

The J8064D688ANL enhances network performance in your Small Office/Home Office and provides 100BASE-TX high-speed Internet access to your ADSL modem. Multiport RJ45 provides a reliable and efficient data transmission solution for LAN-on-Motherboard (LOM). It is ideal for stable network connections in hubs and switches and facilitates smooth data transfer in large network environments.

Specifications of J8064D688ANL Rj45 Connector:

Overview	100 Base-TX Fast Ethernet RJ45 1xN Tab-DOWN Integrated Magnetics Connector (ICM)
Ports Configuration	1x8
Data Rate	100BASE-TX
Shielding	Shielded, EMI Fingers
LED Option	Left green / Right yellow
Mounting Style	Through Hole
Mounting Angle	Right Angle
ROHS Compliant	YES-RoHS-6
Termination Style	Solder
Contact Mating Area Plating	GOLD 30 U''
Turns Ratio	TX: 1CT:1CT RX: 1CT:1CT
Insertion Loss (dB TYP)	1-100 MHz:-1.2
Return Loss (dB TYP) 100Ω (± 15 Ω)	1-10 MHz: -20 30 MHz: -16 60-80 MHz: -12
Cross Talk (dB TYP)	1-30 MHz: -40 30-60 MHz: -35 60-100 MHz: -30
Common Mode Rejection (dB TYP)	1-50 MHz: -30 50-130 MHz: -20
Hipot (VDC MIN)	2250 @ 50/60 Hz 1 minute
Operating Temperature	0°C- 70°C
Length	21.36
Width	114.73mm
Height	13.61mm

Features and Benefits:

RoHS peak wave solder temperature rating 260°C
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
Meets IEEE 802.3 specification
350uH minimum OCL with 8mA bias current
high performance for maximum EMI suppression

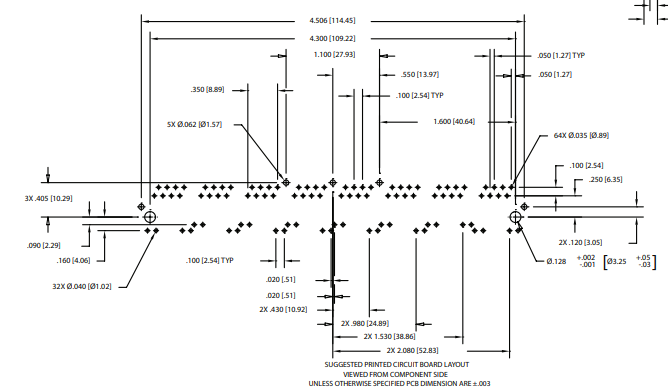

J8064D688ANL Mechanicals:

J8064D688ANL 100BASE TX Rj45 Connector 1x8 Port With THT Mounting
