LPJE107XAGNL 2x2 Rj45 With LED , 4x rj45 Ethernet , R/A Shield Connector

Name: LPJE107XAGNL 2x2 Rj45 With LED 4x rj45 Ethernet RA Shield Connector
Brand: LINK-PP
Price: 0.11 USD

LPJE107XAGNL 2x2 Rj45 With LED , 4x rj45 Ethernet , R/A Shield Connector Manufactures

Brand Name : LINK-PP

Model Number : LPJE107XAGNL

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Part No : LPJE107XAGNL

Specification : LPJE107 Series

Ethernet : Cat5/5e

Mounting : Thru-hole

Termination : Solder

Samples : Available

Contact Now

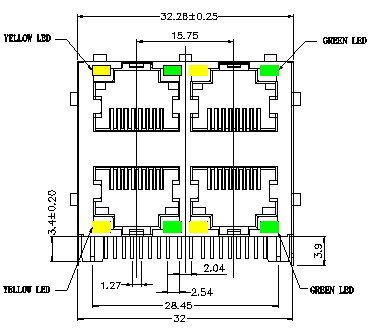

LPJE107XAGNL 2x2 Rj45 With LED , 4x rj45 Ethernet , R/A Shield Connector

4x Rj45 With LED or without
LPJE107XAGNL
R/A Shield Connector
1u,3u,6u,15,30u,50u Gold Plating
2x2 Port Ethernet Port

NOTES:
MACHANICAL:
1.HOUSING MATERIAL :GLASS FILLED POLYESTER OR HIGH TEMP. UL94V-0.
2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.35mm.
3.PLATING :CONTACT AREA-SELECTIVE GOLD PLATING.
TAILS-PLATED TIN OVER NICKEL.
4.OPERATING LIFE :750 CYCLES MIN
5.PCB RETENTION PRE-SOLDER :1 LB MIN
6.PCB RETENTION POST-SOLDER :10 LBS MIM
7.LED SIZE :3.2*2.0*4.0*P=2.29mm
ELECTRICAL:
1.VOLTAGE RATING :125VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :50 MILLIOHMS MAX.
4.INSULATION RESISTANCE :1000MEGOHMS MIN @ 500V DC.
5.DIELECTRIC STRENGTH :1000V AC RMS 60Hz. 1MIN.
ENVIRONMENTAL:
1.STORAGE :-40℃ +85℃.
2.OPERATION :-40℃ +85℃.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

LPJE107XAGNL 2x2 Rj45 With LED , 4x rj45 Ethernet , R/A Shield Connector

LINK-PP 2x2 Rj45 Series Available Part
LPJE107XAGNL	LPJE107XDNL	LPJE107XAWNL
LPJE107CNL	LPJE1075CNL	LPJE107XAHNL
LPJE107X-2CNL	LPJE107XBWNL	LPJE107XCNL
