LPJG0801BBNL Coon Rj-45,Shield Thru-hole W/LEDs&Magnetic ,Gigabit 1:1,RoHs

Name: LPJG0801BBNL Coon Rj45Shield Thruhole WLEDsampMagnetic Gigabit 11RoHs
Brand: LINK-PP
Price: 1 USD

LPJG0801BBNL Coon Rj-45,Shield Thru-hole W/LEDs&Magnetic ,Gigabit 1:1,RoHs Manufactures

Brand Name : LINK-PP

Model Number : LPJG0801BBNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Specification : LPJG0801 Series

Munafactuer : LINK-PP

Ethernet : 1x10/100/1000

Indicator : LED Optional

Samples : Available

Contact Now

LPJG0801BBNL Coon Rj-45,Shield Thru-hole W/LEDs&Magnetic ,Gigabit 1:1,RoHs

1 x 10/100/1000BASE-TX Rj45 Port
LPJG0801BBNL / LPJG4801BBNL
IEEE 802.3ab 1000BASE-T

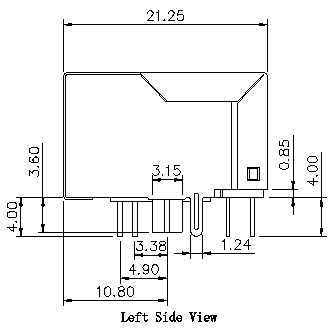

Rj45 Right Angle PCB Connector
LPJG0801BBNL : 0℃～70℃.
LPJG4801BBNL: -40℃～85℃.

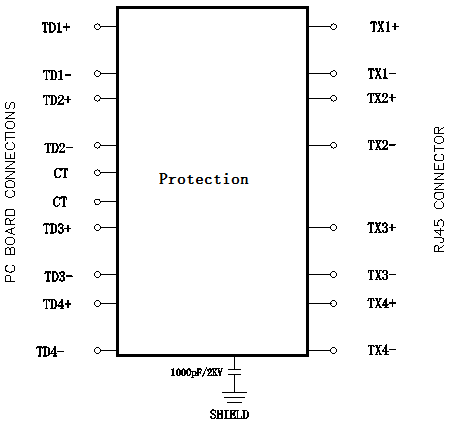

Electrical Specifications @ 25℃
1.Turns Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-18 30～60MHz:-16
60～80MHz:-12 80～100MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.Common Mode Rejection(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range: 0℃～70℃.

LPJG0801BBNL Coon Rj-45,Shield Thru-hole W/LEDs&Magnetic ,Gigabit 1:1,RoHs
