LPJ17202CNL Cross RJ45 MIC24A10-010W-LF3 , 2x10/100 Mbps Ethernet Jack

Name: LPJ17202CNL Cross RJ45 MIC24A10010WLF3 2x10100 Mbps Ethernet Jack
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Model Number : MIC24A10-010W-LF3

Certification : UL,RoHS,Reach,ISO

Place of Origin : Made In China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Specification : MIC24A10-010W-LF3

Part No : LPJ17202CNL

Application : Industry Switch, Router ,Gateway...

Ethernet : 2x10/100 Mbps

Indicator : LED Flexible

Samples : Available

Contact Now

LPJ17202CNL Cross RJ45 MIC24A10-010W-LF3 , 2x10/100 Mbps Ethernet Jack

LPJ17202CNL LINK-PP Rj45 Magnetic Rj45
Rj45 2x1 Magnetics Jack 10/100Mbps
Cross MIC24A10-010W-LF3
Integrated Magnetics 2x Rj45 Connector
LED Indicator Flexible

Electrical Specifications @25℃

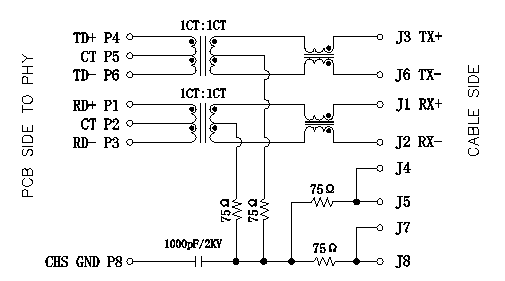

1.Turns Ratio(%%P3%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance: 350uH MIN
@100KHz,0.1V,8mA DC BIAS
3.Insertion Loss:
1-65MHz: -1.0dB MAX
4.Return Loss(100Ω%%P15Ω):
1-10MHz: -20dB MIN
10-30MHz: -16dB MIN
30-60MHz: -12dB MIN
60-80MHz: -12dB MIN
5.Crosstalk:
1-30MHz: -40dB MIN
30-60MHz: -35dB MIN
60-100MHz: -30dB MIN
6.Common Mode Rejection:
1-50MHz: -30dB MIN
50-150MHz: -20dB MIN
7.Hipot: 1500Vrms
8.Operating Temperature: 0℃～70℃.

LPJ17202CNL Cross RJ45 MIC24A10-010W-LF3 , 2x10/100 Mbps Ethernet Jack

Product Tags:

stacked rj45 connectors

modular jacks rj45
