E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports

Name: E5J8811CJ25L E5J8811CJ22L Side Entry LED Rj45 Ganged Jack 1x4 Ports
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Model Number : E5J88-11CJ25(2)-L

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

Specification 1 : E5J88-11CJ25-L

Specification 2 : E5J88-11CJ22-L

Part No : LPJE401BGNL

Port : 1x4

LED : Green-Yellow

Samples : Available

Contact Now

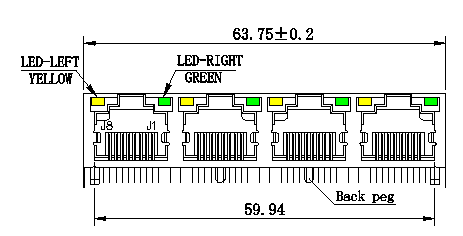

E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports

32 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK
LINK-PP LPJE401AGNL Female To Female Rj45
Cross Pulse E5J88-11CJ25-L / E5J88-11CJ22-L
Speed: CAT 3/5/5e Rj45 Network Port Without Magnetics Inside
Number of Ports: 1X4
Latch: UP
Package: THT
PCB Mount Angle: SIDE ENTRY Female Jack

NOTES:
PCB JACK Specification
1. Insulation Resistance:500MΩMIN @ 500 VDC
2. Withstanding Voltage:AC1000V 50Hz or
60Hz 1min.
3. Durability:600 Mating Circles MIN.
4. Gold Plating:
(Gold Flash;1.5;3;6;15;30;50)U" Inch

ENVIRONMENTALl
1. Storage Temperature: -40℃ To +85℃
2. Opertion Temperature: -40℃ To +85℃
3. Wave Soldering Temperature:
255℃～265℃(5～10Seconds)
4. RoHs Compliant.

E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports
